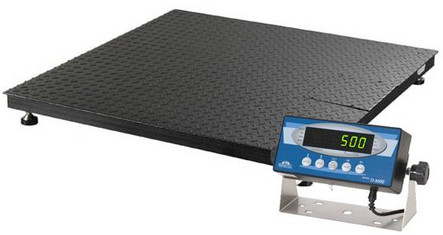

Transcell GRD5544-10K Guardian Floor Scale with TI-500E Package
The Transcell Guardian floor scale package is an affordable option for medium to heavy capacity weighing applications. It is commonly used in shipping and receiving, warehousing, manufacturing, and a wide range of industrial applications. This product package includes the fully equipped floor scale base, TI-500E indicator, homerun cable with quick connect, and a power adapter.
Features
- 10,000 lb capacity and 2 lb readability
- 4 ft by 4ft model
- NTEP Class III approved
- Full duplex RS-232 for data transmitting
- Indicator includes stainless steel swivel bracket
- Bright green LED display
- Front panel access to span calibration
- Powered with standard 12 VDC adapter, (adapter included)
- 19” deck with diamond safety tread on the 4'x4' models
- Overload protected up to 150% capacity
- Four threaded top access eye-bolt holes for easy mobility and service
Applications
- General weighing
Documentation
Transcell Guardian Data Sheet Transcell TI-500E Data Sheet Transcell TI-500E Manual
3 Year Limited Warranty on scale structures, 1 Year Limited Manufacturer€™s Warranty on all Electronic components
- NTEP:
- Yes
- NTEP CC:
- 06-084
- Capacity:
- 10,000 lb
- Readabililty:
- 2 lb
- Indicator Construction:
- ABS plastic
- Floor Scale Construction:
- Mild Steel, 0.19" thick top deck with diamond tread, powder coated paint
- J-box Construction:
- ABS plastic
- Load Cell Construction:
- Alloy steel nickel plated
- Buttons of Operation:
- Units, Zero, Net/Gross, Tare, Print
- Display:
- 0.6€, 6 Digit LED, Green
- Annunciators:
- Zero, Tare, Gross, lb, kg, Stable, Net, PCS, Negative
- Communication:
- RS-232 Full Duplex
- Overload Protection:
- 150% of rated capacity
- Operating Temperature Range:
- 14°F to 104°F
- Manufacturer:
- Transcell
- Model:
- GRD5544-5k
- Indicator Included:
- TI-500E
