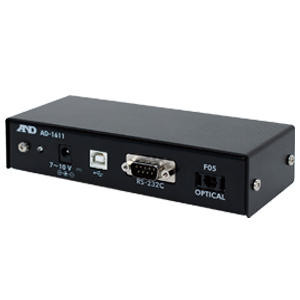

A&D AD-1611 Optical Interface for EK-AEP Series

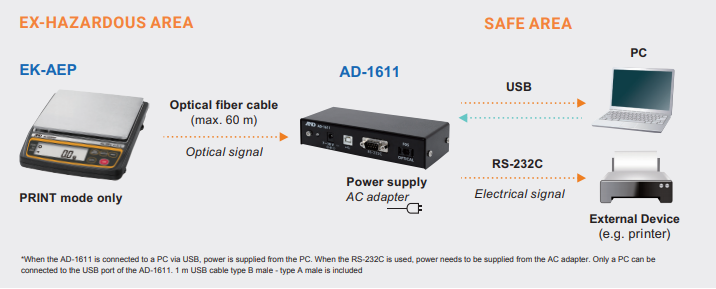

The AD-1611 optical communication adapter connects the EK-AEP to an external device such as a printer or PC through RS-232C or USB.
- Power Supply:
- Power supply AC adapter or USB
- Operating temperature and humidity:
- €“10 to 40°C/32 to 104°F, 85% RH or less (no condensation)
- Baud rate:
- According to the value set on the balance
- Receiving connector:
- F05 (IEC 60874-17, F05 type)
- Sending connector:
- RS-232C (D-Sub 9 pin) or USB (type B)
- Optical transmission distance:
- Max. 60 m (no extension available)
- Dimensions:
- 160 (W) × 58 (D) × 38 (H) mm
- Net weight (main unit only):
- Approx. 380 g
- Standard accessories:
- AC adapter, USB cable
- Brand:
- A&D Weighing
- Model:
- AD-1611
