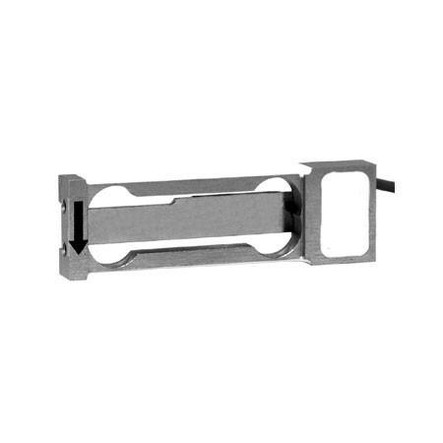

Anyload 108AA-300g Single Point Load Cell

$98.00
Part #:
108AA-300g
Availability:
Typically ships in 2-3 days

Anyload 108AA-300g Single Point Load Cell

Features

  • 300 g capacity rating
  • Aluminum construction
  • Environmentally sealed IP66
  • 1.0 mV/V ­±20% output
  • Load cell cable length 0.5 m
  • Safe overload up to 150% capacity

Common Applications

  • OEM
  • Bench Scales
  • Conveyor Scales
Documentation

108AA Data Sheet

1 year manufacturer's limited warranty
Manufacturer:
Anyload
Model:
108AA-300g
Approvals:
CE, RoHS, and Ex
NTEP:
Yes
Capacity:
300 g
Safe Overload:
150% capacity
Length:
3.62"
Height:
1.10"
Width:
0.16"
Construction:
Aluminum
Cable Color Code:
Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
Rated Excitation:
10 V (maximum of 15 V)
Full Scale Output:
1.0 mV/V ±20%
Output Resistance:
350 (± 3) ohms
Input Resistance:
415 (± 15) ohms
Compensated Temperature Range:
14°F to 104°F/-10°C to 40°C
Seal Type:
Environmentally sealed
IP Rating:
IP66
Cable Length:
0.5 m
