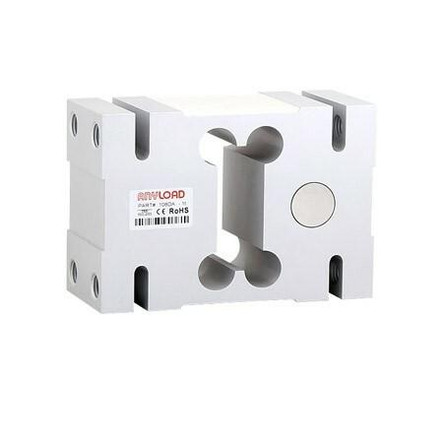

Anyload 108DA-2t Single Point Load Cell, NTEP

$418.00
Part #:
108DA-2t
Availability:
Typically ships in 2-3 days

Anyload 108DA-2t Single Point Load Cell, NTEP

Features

  • NTEP CC: 12-036A1
  • 2 ton capacity rating
  • Aluminum construction
  • Environmentally sealed IP66
  • 2.0 mV/V ­±10% output
  • Load cell cable length 2 m
  • Safe overload up to 150% capacity

Interchange

  • Vishay Celtron HOC
  • Vishay Tedea-Huntleigh 1320
Common Applications
  • OEM
  • Bench Scales
  • Conveyor Scales
Documentation

108DA Data Sheet

1 year manufacturer's limited warranty
Manufacturer:
Anyload
Model:
108DA-2t
Approvals:
CE, RoHS, and Ex
NTEP:
Yes
Class:
III
Capacity:
2 ton
Safe Overload:
150% capacity
Length:
6.93"
Height:
4.92"
Width:
2.99"
Construction:
Aluminum
Cable Color Code:
Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
Rated Excitation:
10 V (maximum of 15 V)
Full Scale Output:
2.0 mV/V ±10%
Output Resistance:
350 (± 3) ohms
Input Resistance:
415 (± 15) ohms
Compensated Temperature Range:
14°F to 104°F/-10°C to 40°C
Seal Type:
Environmentally sealed
IP Rating:
IP66
Cable Length:
2 m
