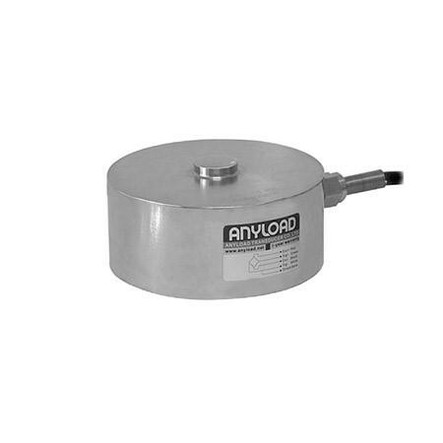

Anyload 266AS-5t Compression Load Cell

$964.00
Part #:
266AS-5t
Availability:
Typically ships in 2-3 days

Anyload 266AS-5t Compression Load Cell

Features

  • 5 ton capacity rating
  • Stainless steel construction
  • Welded seal IP68
  • 2.0 mV/V ± 1% output
  • Load cell cable length 10 m
  • Safe overload up to 150% capacity
Common Applications
  • Railroad Scales
  • Truck Scales
Documentation

266AS Data Sheet

1 year manufacturer's limited warranty
Manufacturer:
Anyload
Model:
266AS-5t
Capacity:
10,000 lb
Approvals:
CE, RoHS, and Ex
Safe Overload:
150% capacity
Length:
2.44"
Height:
0.87"
Width:
2.44"
Construction:
Stainless Steel
Cable Color Code:
Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
Rated Excitation:
10 V (maximum of 15 V)
Full Scale Output:
2.0 mV/V ± 1%
Input Resistance:
770 (± 30) ohms
Output Resistance:
700 (± 5) ohms
Compensated Temperature Range:
14°F to 122°F/-10°C to 50°C
Seal Type:
Welded Seal
IP Rating:
IP68
Cable Length:
10 m
