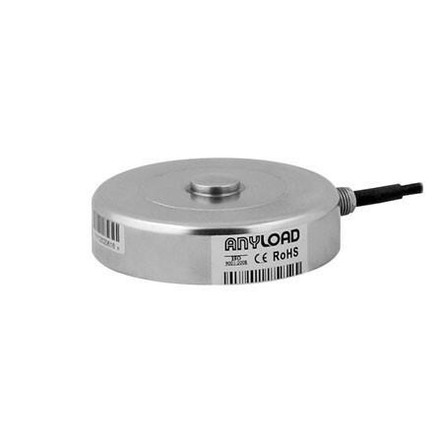

Anyload 266ASPT-5t-YZ Compression Load Cell

$636.00
Part #:
266ASPT-5t-YZ
Availability:
Typically ships in 2-3 days

Anyload 266ASPT-5t-YZ Compression Load Cell

Features

  • 5 ton capacity rating
  • Stainless steel construction
  • Welded seal IP68
  • 2.0 mV/V ± 1% output
  • Load cell cable length 5 m
  • Safe overload up to 150% capacity

Interchange

  • PT Global LPX
Common Applications
  • Railroad Scales
  • Truck Scales
Documentation

266ASPT Data Sheet

1 year manufacturer's limited warranty
Manufacturer:
Anyload
Model:
266ASPT-5t-YZ
Capacity:
10,000 lb
Approvals:
CE, RoHS, and Ex
Safe Overload:
150% capacity
Length:
3.94"
Height:
1.18"
Width:
3.94"
Construction:
Stainless Steel
Cable Color Code:
Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
Rated Excitation:
10 V (maximum of 15 V)
Full Scale Output:
2.0 mV/V ± 1%
Input Resistance:
415 (± 15) ohms
Output Resistance:
350 (± 3) ohms
Compensated Temperature Range:
14°F to 122°F/-10°C to 50°C
Seal Type:
Welded Seal
IP Rating:
IP68
Cable Length:
5 m
