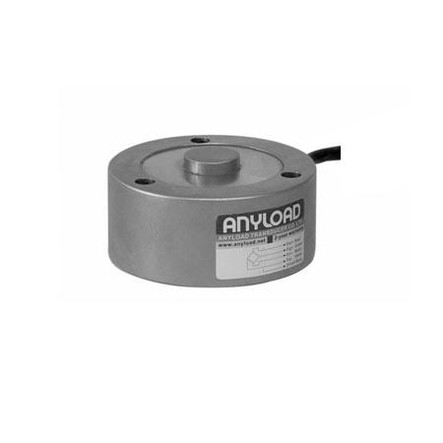

Anyload 276EH-100t Compression Load Cell

$1,160.00
Part #:
276EH-100t
Availability:
Typically ships in 2-3 days

Anyload 276EH-100t Compression Load Cell

Features

  • 100 ton capacity rating
  • Alloy steel construction
  • Environmentally sealed IP67
  • 2.5 mV/V ± 10% output
  • Load cell cable length 10 m
  • Safe overload up to 150% capacity
Common Applications
  • Railroad Scales
  • Truck Scales
Documentation

276EH Data Sheet

1 year manufacturer's limited warranty
Manufacturer:
Anyload
Model:
276EH-100t
Capacity:
200,000 lb
Approvals:
CE, RoHS, and Ex
Safe Overload:
150% capacity
Length:
4.84"
Height:
3.74"
Width:
4.84"
Construction:
Stainless Steel
Cable Color Code:
Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
Rated Excitation:
10 V (maximum of 15 V)
Full Scale Output:
2.5 mV/V ± 10%
Input Resistance:
400 (± 20) ohms
Output Resistance:
350 (± 3) ohms
Compensated Temperature Range:
14°F to 122°F/-10°C to 50°C
Seal Type:
Environmentally Sealed
IP Rating:
IP67
Cable Length:
6 m
