Anyload MK4-563YHM4-1000 lb Weigh Module Kit, 4-Modules, NTEP Class III

Anyload MK4-563YHM4-1000 lb Weigh Module Kit, 4-Modules

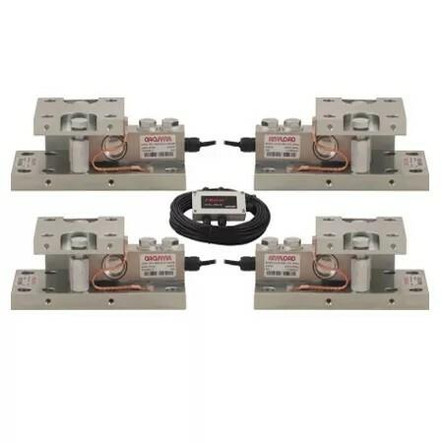

The Anyload MK4-563YHM4 weigh module kit includes four 563YH shear beam load cells, four modules, a water proof junction box, and 65 ft of shielded homerun cable. The rocker pin-loading design encourages proper alignment and allows for thermal expansion, while still providing enough space for simple installation or load cell replacement. Each low profile module includes overload and uplift protection. The included top plates contain four pre-drilled holes for simplified installation to tanks and other vessels.

Kit Includes:

• Four sets of 563YHM4 alloy steel weigh modules

• Four 563YH alloy steel singled ended beam load cells
• One J04SA-16 water-resistant junction box with breather vent
• 65ft (20m) cable, 4-wire PVC cable with both copper braid & foil shielding (CB4-5.1-20m)

Features

• 1000 lb capacity rating (each module)
• Recommended working capacity: 2000 lb
• Maximum capacity: 4000 lb
• IP67 rated load cells
• 6 meter long cables on the load cells
• Simple installation for tank, hopper, & silo weighing
• Hygienic design impervious to dirt & debris
• Uplift and overload protection built in
• CE, RoHS, and ExNepsi certified load cells

• Designed for simplified load cell removal and installation (extra space is provided to be able to utilize a jack)
• Thermal expansion allowance
• Included top plates for simplified mounting

Documentation

563YH Load Cell Data Sheet MK4-563YHM4 Module Kit Data Sheet
