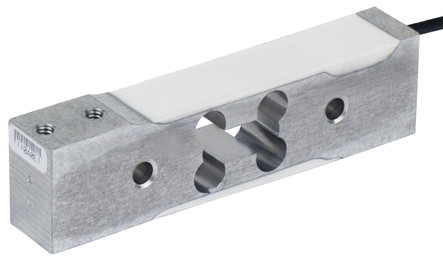

Cardinal Detecto TSP-20KGP 20 kg Single Point Load Cell, NTEP

MSRP: $347.00
$312.30
(Save $34.70)
Part #:
TSP-20KGP
Availability:
Vendor Direct - Typically ships in 5-10 days

Cardinal Detecto TSP-20KGP 20 kg Single Point Load Cell, NTEP

Features

  • 20 kg capacity rating
  • NTEP approved legal for trade
  • NTEP CC #97-136
  • Aluminum construction
  • Environmentally sealed with IP65 protection class
  • 2 mV/V output
  • Max platform size 400 mm x 400 mm
  • Load cell cable length 3 meters
  • 1 year limited warranty
  • Safe overload up to 150% capacity

Common Applications

  • OEM
  • Packaging Scales
  • Bench Scales
  • Platform Scales
  • Hanging Scales
  • Counting Scales
  • Medical Scales
1 year limited manufacturer's warranty
Manufacturer:
Detecto
Model:
TSP-20KGP
NTEP:
Yes
NTEP CC#:
97-136
Capacity:
20 kg
Safe Overload:
150% capacity
Length:
150.1 mm
Height:
39.9 mm
Width:
25.4 mm
Construction:
Aluminum
Cable Color Code:
Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Yellow = Ground
Recommended Excitation Voltage:
10 VDC (maximum of 15 V)
Full Scale Output:
2 mV/V
Excitation Terminal Resistance:
435 ±10 ohms
Signal Terminal Resistance:
350 ± 5 ohms
Insulation Resistance:
5000 megohms
Seal Type:
Environmentally sealed
IP Rating:
IP65
Cable Length:
3 meters
