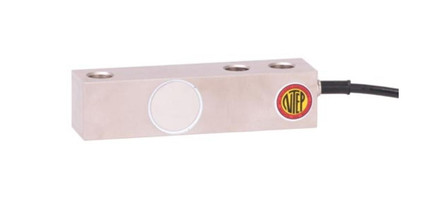

CAS 23LAT-250L 250 lb Single Ended Beam Load Cell, Through Hole

$181.50
Part #:
CAS-23LAT-250L
Availability:
Typically ships in 1-2 days

CAS 23LAT-250L 250 lb Single Ended Beam Load Cell, Through Hole

Features

  • 250 lb capacity rating
  • Through hole design
  • Alloy steel
  • IP 67 rating
  • Environmentally sealed
  • 3 mV/V output
  • Load cell cable length 20 ft
  • 1 year limited manufacturer's warranty
  • Safe overload up to 150% capacity

Interchange Options

  • Artech - 30310
  • CAS - BSA
  • Celtron - SQB
  • HBM - A35
  • Revere - 5123
  • Rice Lake - RL35023
  • Rice Lake - RL30000
  • Sensortronics - 65023
  • Tedea - 3411
  • Totalcomp - TSB
1 year limited manufacturer's warranty
Manufacturer:
CAS
Model:
CAS-23LAT-250L
Capacity:
250 lb
Safe Overload:
150% capacity
Length:
5.12"
Width:
1.25"
Height:
1.25"
Thread Size:
Through hole
Construction / Finish:
Alloy steel
Cable Color Code:
Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal
Rated Excitation:
10V AC/DC (20V Max)
Full Scale Output:
3.0 mV/V
Input Impedance:
385 +/- 10 ohms
Output Impedance:
350 +/- 3 ohms
Compensated Temperature Range:
-10°C to 40°C
Operating Temperature Range:
-20°C to 60°C
Seal Type:
Environmentally Sealed
IP Rating:
IP67
Cable Length:
20 ft
