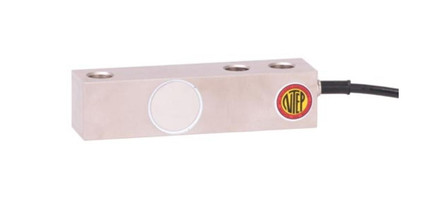

CAS 23LW3-10K 10,000 lb Stainless Steel Single Ended Beam Load Cell, Welded Seal

$412.50
Part #:
CAS-23LW3-10K
Availability:
Typically ships in 1-2 days

CAS 23LW3-10K 10,000 lb Stainless Steel Single Ended Beam Load Cell, Welded Seal

Features

  • 10,000 lb capacity
  • Threaded hole
  • Stainless steel construction
  • IP 67 rating
  • Welded seal
  • 3 mV/V output
  • Load cell cable length 20 ft
  • 1 year limited manufacturer's warranty
  • Safe overload up to 150% capacity

Interchange Options

  • Artech T20 - SS30310
  • Celtron - SQB HSS
  • Fairbanks - 3-54786-1
  • HBM - H35
  • Revere - 9123
  • Rice Lake - RL35083
  • Rice Lake - RLH35
  • Sensortronics C20 - 65083
1 year limited manufacturer's warranty
Manufacturer:
CAS
Model:
CAS-23LW3-10K
Capacity:
10,000 lb
Safe Overload:
150% capacity
Length:
6.75"
Width:
1.5"
Height:
1.5"
Thread Size:
3/4 - 16 UNF
Construction / Finish:
Stainless steel
Cable Color Code:
Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal
Rated Excitation:
10V AC/DC (20V Max)
Full Scale Output:
3 mV/V
Input Impedance:
385 +/- 10 ohms
Output Impedance:
350 +/- 3 ohms
Compensated Temperature Range:
-10°C to 40°C
Operating Temperature Range:
-20°C to 60°C
Seal Type:
Welded Seal
IP Rating:
IP67
Cable Length:
20 ft
