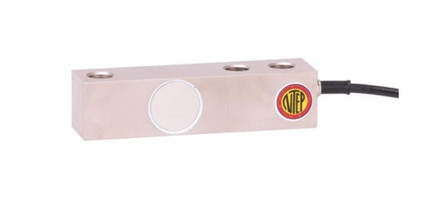

CAS 23LW3-2AK 2500 lb Stainless Steel Single Ended Beam Load Cell, Welded Seal

$330.00
Part #:
CAS-23LW3-2AK
Availability:
Typically ships in 1-2 days

CAS 23LW3-2AK 2500 lb Stainless Steel Single Ended Beam Load Cell, Welded Seal

Features

  • 2500 lb capacity rating
  • Threaded hole
  • Stainless steel construction
  • IP 67 rating
  • Welded seal
  • 3 mV/V output
  • Load cell cable length 20 ft
  • 1 year limited manufacturer's warranty
  • Safe overload up to 150% capacity

Interchange Options

  • Artech T20 - SS30310
  • Celtron - SQB HSS
  • Fairbanks - 3-54786-1
  • HBM - H35
  • Revere - 9123
  • Rice Lake - RL35083
  • Rice Lake - RLH35
  • Sensortronics C20 - 65083
1 year limited manufacturer's warranty
Manufacturer:
CAS
Model:
CAS-23LW3-2AK
Capacity:
2500 lb
Safe Overload:
150% capacity
Length:
5.12"
Width:
1.25"
Height:
1.25"
Thread Size:
1/2 - 20 UNF
Construction / Finish:
Stainless steel
Cable Color Code:
Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal
Rated Excitation:
10V AC/DC (20V Max)
Full Scale Output:
3 mV/V
Input Impedance:
385 +/- 10 ohms
Output Impedance:
350 +/- 3 ohms
Compensated Temperature Range:
-10°C to 40°C
Operating Temperature Range:
-20°C to 60°C
Seal Type:
Welded Seal
IP Rating:
IP67
Cable Length:
20 ft
