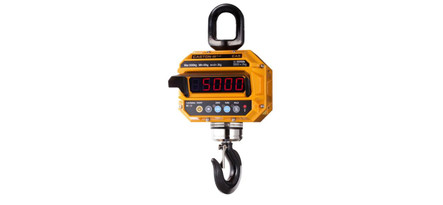

CAS Caston III Plus CAST3-PLUS(20K) Crane Scale, 20,000 lb x 5 lb

$3,250.00
Part #:
CAST3-PLUS(20K)
Availability:
Typically ships in 1-2 days

CAS Caston III Plus CAST3-PLUS(20K) Crane Scale, 20,000 lb x 5 lb

The Caston III Plus series features a bright red LED display with a sun visor for easy visibility in any lighting situation. The scale includes 2 rechargeable batteries, a charger, and a wireless remote control. The Caston III Plus series can have the THD-BT Bluetooth module added to connect to TWN portable handheld indicator.

Features

  • 20,000 lb capacity with 5 lb readability
  • Bright red 1.5 Inch LED screen with sun visor
  • Full capacity tare
  • Rechargeable battery that is easy to remove and install
  • Extra rechargeable battery and charger included
  • Wireless remote control included
  • Safe overload up to 150% capacity
  • Ultimate overload up to 300% capacity
  • Add optional THD-BT Bluetooth module to connect to TWN portable handheld indicator

Documentation

Caston III Brochure Caston III Manual

2 year limited manufacturer's warranty
Manufacturer:
CAS
Model:
CAST3-PLUS(20K)
Communication Method:
Optional Bluetooth (Module THD-BT must be added)
Capacity:
20,000 lb
Readability:
5 lb
Housing:
Alodined cast aluminum, Double O-ring gasket, NEMA 4
Display:
Bright red LED, 6 digit, 1.5 inches tall, sun visor
Power:
Rechargeable 12V Battery, Charger and extra battery included
IP Rating:
IP65
Battery Life:
15 to 30 hours
Temperature Range:
14 F to 104 F
Safe Overload:
150% of Rated Capacity
Ultimate Overload:
300% of Rated Capacity
Dimensions:
11" x 13.1" x 37.1"
Remote Distance (BT) Option to be Added:
Up to 350 ft
Channels (BT) Option to be Added:
Up to 79 separate channels
Frequency (BT) Option to be Added:
2.4 Ghz
Hook, Eye, Shackles:
Crosby or equivalent
