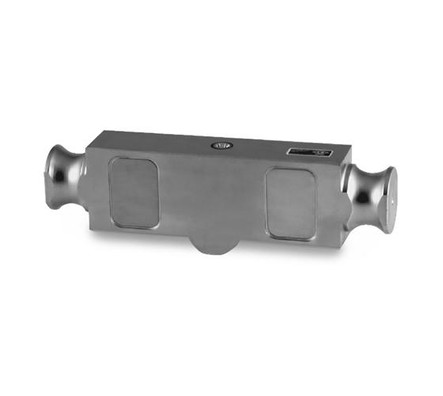

Celtron DLB-25K 25,000 lb Double Ended Beam Load Cell, NTEP

MSRP: $615.00
$517.00
(Save $98.00)
Part #:
46684
Availability:
Discontinued

Discontinued by the Manufacturer

Celtron DLB-25K 25,000 lb Double Ended Beam Load Cell

Features

  • 25,000 lb / 11,339.8 kg capacity rating
  • NTEP 1:10,000 IIIL
  • High-alloy steel, nickel plated
  • Environmentally sealed IP67 rating
  • 3 mV/V output
  • 700 ohm output resistance
  • Load cell cable length 35 ft
  • Safe overload up to 150% capacity
  • Safe side load up to 100% capacity

Common Applications

  • Truck scales

Interchange

  • Rice Lake Weighing Systems RL75040
  • VPG Sensortronics 65040A
  • Thurman TSC 840
1 year limited manufacturer's warranty
Manufacturer:
Celtron
Model:
DLB-25K
Approvals:
cFM, NTEP
NTEP Class:
1:10,000 IIIL
Capacity Rating:
25,000 lb / 11,339.8 kg
Safe Overload:
150% capacity
Construction / Finish:
High-alloy steel, nickel plated
Cable Color Code:
Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
Rated Excitation:
5-10 VDC (maximum of 15 V)
Full Scale Output:
3 mV/V
Output Resistance:
700 (± 5) ohm
Input Resistance:
770 (± 10) ohm
Compensated Temperature Range:
14‚°F to 104‚°F (-10‚°C to 40‚°C)
Operating Temperature Range:
-40‚° F to 150‚° F / -40‚°C to 65‚°C
Seal Type:
Environmentally sealed, IP67
Combined Error:
0.025% full scale
Insulation Resistance:
5000 megohms
Cable Length:
35 ft
Cable Diameter:
0.200 polyurethane jacket
Weigh Modules Available:
Rice Lake Weighing Systems Translink
