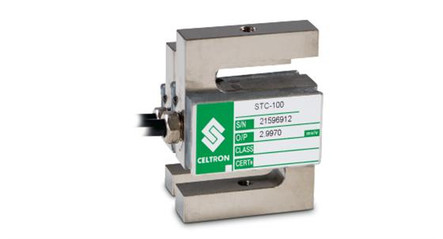

Celtron STC-2.5K 2500 lb S-Beam Load Cell, NTEP

MSRP: $225.00
$213.75
(Save $11.25)
Part #:
30073
Availability:
Typically ships in 1-2 days

Celtron STC-2.5K 2500 lb S-Beam Load Cell

Features

  • 2500 lb / 1134 kg capacity rating
  • NTEP 1:5000 III, 1:10,000 IIIL
  • Alloy steel construction, nickel plated
  • IP 67 rating
  • 3 mV/V output
  • Load cell cable length 20 ft
  • Safe overload up to 150% capacity

Common Applications

  • OEM
  • Tank Scales
  • Crane Scales

Interchange

  • RL20001
  • VPG Sensortronics 60001
1 year limited manufacturer's warranty
Manufacturer:
Celtron
Model:
STC-2.5K
Approvals:
cFM, CE, NTEP
NTEP Class:
1:5000 III, 1:10,000 IIIL
Capacity Rating:
2500 lb / 1134 kg
Safe Overload:
150% capacity
Height:
3"
Length:
2"
Width:
1.25"
Hole Threading:
1/2-20UNF
Construction / Finish:
High-alloy steel, nickel plated
Cable Color Code:
Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
Rated Excitation:
5-10 VDC (maximum of 15 V)
Full Scale Output:
3 mV/V
Output Resistance:
350 (+/- 3) ohms
Input Resistance:
385 (+/- 5) ohms
Compensated Temperature Range:
14‚°F to 104‚°F (-10‚°C to 40‚°C)
Operating Temperature Range:
-40‚° F to 150‚° F / -40‚°C to 65‚°C
Seal Type:
IP67 Environmentally Sealed
Non-Repeatability:
0.01% full scale
Combined Error:
0.02% full scale
Insulation Resistance:
5000 megohms
Cable Length:
20 ft
Cable Diameter:
0.200 polyurethane jacket
Interchange:
RL20001, VPG Sensortronics 60001
Weigh Modules Available:
ITCM - Isolated Tension Cell Mount
