Coti Global Sensors CG-22 15 kg Single Point Load Cell, NTEP

$128.00
Part #:
CG-22 15kg
Availability:
Typically ships in 1-2 days

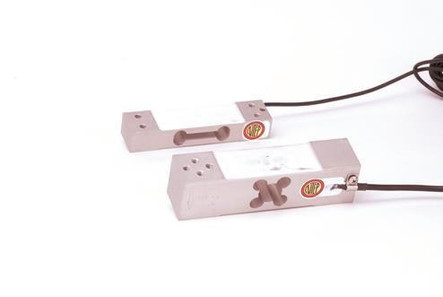

Coti Global Sensors CG-22 15 kg Single Point Load Cell, NTEP

Coti Global Sensors CG-22 single point load cells are commonly used in bench scales and other medium capacity weighing applications.  The CG-22 load cell has a threaded hole, 10 ft load cell cable, and is constructed of aluminum.

Features

  • NTEP 1: 5,000 Class III Single Cell
  • NTEP CC 08-075A2
  • 15 kg capacity rating
  • Aluminum construction
  • Threaded hole
  • IP 67 rating
  • 2 mV/V output
  • Load cell cable length 10 ft
  • Safe overload up to 150% capacity

Interchange

  • Rice Lake Weighing Systems RL1521A
  • BLH C2G1
  • Fairbanks 4900 Series
  • NMB C2G1
  • Tedea 1022
  • Celtron LPS
  • HBM PW6K
  • Artech 61022
1 year limited manufacturer's warranty
Approvals:
FM
Capacity:
15 kg
Safe Overload:
150% capacity
Length:
5.12"
Width:
1.18"
Height:
0.87"
Hole Threading:
M3
Construction:
Aluminum
Cable Color Code:
Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal
Rated Excitation:
10V AC/DC (maximum of 20 V)
Full Scale Output:
2 mV/V
Input Resistance:
410 +/- 10 ohms
Output Resistance:
350 +/- 3 ohms
Insulation Resistance:
5000 megohms
Compensated Temperature Range:
-10�C to 40�C
Operating Temperature Range:
-20�C to 60�C
Seal Type:
Environmentally Sealed
IP Rating:
IP67
Nonlinearity:
+/- 0.02 % full scale
Hysteresis:
+/- 0.02 % full scale
Repeatability:
+/- 0.02% full scale
Creep (30) Minutes:
+/- 0.03% full scale
Zero Balance:
+/- 1.00% full scale
Temperature Effect on Zero:
+/- 0.002% of rated output /�C
Temperature Effect on Output:
+/- 0.001% of applied load /�C
Cable Length:
10 ft
Part Number:
CG-22 15 kg
Manufacturer:
Coti Global Sensors
Model:
CG-22
