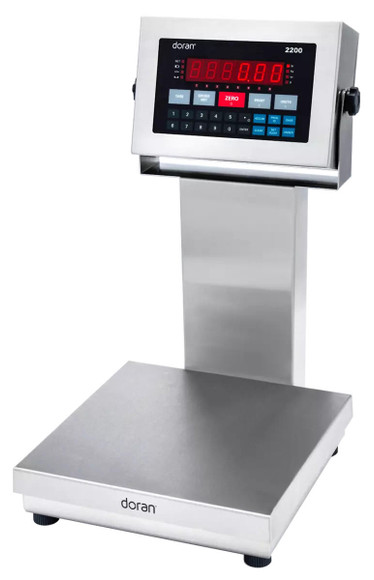

Doran 22050-C14 Stainless Steel Bench Scale, 10"x10" Platform, 50 lb x 0.01 lb, NTEP

$1,760.00
Part #:
22050-C14
Availability:
Typically ships in 1-2 days

Doran 2200 stainless steel bench scales perform well in demanding applications with long-lasting durability, exceptional washdown shielding for wet environments, and a simple yet expandable operation. This scale system features an impressive overload protection, an IP69K rated indicator and a puncture-proof keypad that works even with gloves on. The internal memory of the 2200 series consists of up to 800 product IDs that can be utilized to create a more automated process.

Platform Features

  • Attached 14 inch column for the indicator mount
  • 304 stainless steel construction
  • Quad-Spring base design provides 1000% overload protection in scale bases from 8" x 8" to 15" x 15"
  • Six-point overload protection in bases 18" x 18" and larger provides 300% overload protection
  • NTEP and Measurement Canada approved

Indicator 2200 Features

  • IP69K rated 304 stainless steel enclosure
  • 800 Product ID memory, containing setpoint values, batch program, accumulator, counter values, tare, two data fields, setpoint and output configurations
  • Bright red, 1" tall 6 digit LED display
  • Two Bi-directional RS-232 ports
  • Two remote switch inputs from Digital I/Os
  • Includes swivel bracket for mounting
  • Optimized puncture proof keypad with wide range of operational buttons
  • Can be set up with password protection
  • NTEP and Measurement Canada approved

Applications

  • General Weighing
  • Accumulation

Optional Accessories

  • Rechargeable battery
  • Remote switches
  • Optional communications available include: Ethernet, WiFi-802.11b/g, USB, Bluetooth, or 4-20 mA

Documentation

Doran 2200 Manual Doran 2200 Series Brochure

2 Year Limited Manufacturer's Warranty
Capacity:
50 lb
Readability:
0.01 lb
Units:
lb, kg, oz, g, lb:oz
Base Dimension:
10" x 10"
NTEP:
Yes
Class:
III
Indicator NTEP CC:
06-101
Base NTEP CC:
97-097A1
Measurement Canada Approved:
Yes
Load Cell Excitation:
5 VDC
Wiring Style:
Hard Wire
Power:
Standard US power cord, 100 – 240VAC 50/60Hz
Optional Power:
Rechargeable battery (not included, must be ordered separately)
IP Rating:
IP69K
Construction:
304 stainless steel
Buttons:
Tare, Gross/Net, Zero, Print, Units, Accum, Id, Clear, Enter, Set Point, Decimal Point, and Numeric Keypad 0-9
Display Type:
LED
Display Size:
1" tall
Standard Communication:
Two Bi-directional RS-232 ports standard (hard wire)
Memory:
800 Product ID’s, containing setpoint values, batch program, accumulator, counter values, tare, two data fields, setpoint and output configurations
Digital I/O:
Two remote switch inputs, Eight outputs – 4.7 or 12 VDC configurable up to 800mA
Scale Style:
Rear mount raised column
Column Height:
14"
Part Number:
22050-C14
Brand:
Doran
