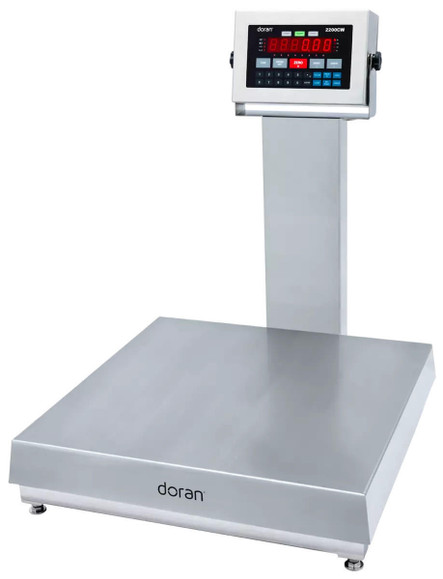

Doran 22500CW/18S-C20 Checkweighing Bench Scale, 18"x18" Platform, 500 lb x 0.1 lb, NTEP

$2,600.00
Part #:
22500CW/18S-C20
Availability:
Typically ships in 1-2 days

Doran 2200CW checkweighing bench scales perform well in demanding applications with long-lasting durability, exceptional washdown shielding for wet environments, and a simple yet expandable operation. This scale system features an impressive overload protection, an IP69K rated indicator and a puncture-proof keypad that works even with gloves on. Doran 2200CW bench scales also feature three annunciators with back lights that represent Under, Accept, and Over for checkweighing.

Platform Features

  • Attached 20 inch column for the indicator mount
  • 304 stainless steel construction
  • Quad-Spring base design provides 1000% overload protection in scale bases from 8" x 8" to 15" x 15"
  • Six-point overload protection in bases 18" x 18" and larger provides 300% overload protection
  • NTEP and Measurement Canada approved

Indicator 2200CW Features

  • Checkweigh with 3 or 5 zones
  • Under, Accept, and Over annunciators with backlights right above the main screen
  • IP69K rated 304 stainless steel enclosure
  • Large product memory with 800 Product ID’s and 200 user ID's
  • Bright red, 0.8" tall 6 digit LED display
  • Includes swivel bracket for mounting
  • Optimized puncture proof keypad with wide range of operational buttons
  • Can be set up with password protection
  • NTEP and Measurement Canada approved

Applications

  • General Weighing
  • Checkweighing
  • Accumulation

Optional Accessories

  • Rechargeable battery
  • Remote switches
  • Optional communications available include: Ethernet, WiFi-802.11b/g, USB, Bluetooth, or 4-20 mA
  • Doran specific software (Doran ionSuite, QC Weigh and Performance ID software)

Documentation

Doran 2200CW Manual Doran 2200CW Brochure

2 Year Limited Manufacturer's Warranty
Capacity:
500 lb
Readability:
0.1 lb
Units:
lb, kg, oz, g, lb:oz
Base Dimension:
18" x 18"
NTEP:
Yes
Class:
III
Indicator NTEP CC:
06-101
Base NTEP CC:
13-110
Measurement Canada Approved:
Yes
Load Cell Excitation:
5 VDC
Wiring Style:
Hard Wire
Power:
Standard US power cord, 100 – 240VAC 50/60Hz
Optional Power:
Rechargeable battery (not included, must be ordered separately)
IP Rating:
IP69K
Construction:
304 stainless steel
Buttons:
Tare, Gross/Net, Zero, Print, Units, Accum, Clear Prod Id, Set Point, Over, Under, Enter, Decimal Point, and Numeric Keypad 0-9
Display Type:
LED
Display Size:
0.8" tall
Standard Communication:
Two Bi-directional RS-232 ports standard (hard wire)
Memory:
800 Product ID’s, containing setpoint values, batch program, accumulator, counter values, tare, two data fields, setpoint and output configurations
Digital I/O:
Two remote switch inputs, Eight outputs – 4.7 or 12 VDC configurable up to 800mA
Scale Style:
Rear mount raised column
Column Height:
20"
Part Number:
22500CW/18S-C20
Brand:
Doran
