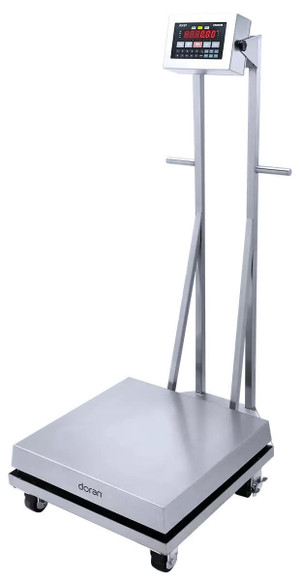

Doran 22500CW-PFS Portable Checkweighing Bench Scale, 24"x24" Platform, 500 lb x 0.1 lb, NTEP

$4,785.00
Part #:
22500CW-PFS
Availability:
Typically ships in 1-2 days

Doran 2200CW checkweighing bench scales perform well in demanding applications with long-lasting durability, exceptional washdown shielding for wet environments, and a simple yet expandable operation. This scale system features an impressive overload protection, an IP69K rated indicator and a puncture-proof keypad that works even with gloves on. Doran 2200CW bench scales also feature three annunciators with back lights that represent Under, Accept, and Over for checkweighing. The PFS version includes a stainless steel cart with swivel and locking casters for portable operation.

Platform Features

  • Portable push cart with swivel and locking casters
  • Fully welded stainless steel push cart
  • Handles mounted at 41.5″ with an overall height of 59″
  • Six-point overload protection in bases 18" x 18" and larger provides 300% overload protection
  • NTEP and Measurement Canada approved

Indicator 2200CW Features

  • Checkweigh with 3 or 5 zones
  • Under, Accept, and Over annunciators with backlights right above the main screen
  • IP69K rated 304 stainless steel enclosure
  • Large product memory with 800 Product ID’s and 200 user ID's
  • Bright red, 0.8" tall 6 digit LED display
  • Includes swivel bracket for mounting
  • Optimized puncture proof keypad with wide range of operational buttons
  • Can be set up with password protection
  • NTEP and Measurement Canada approved

Applications

  • General Weighing
  • Accumulation

Optional Accessories

  • Rechargeable battery
  • Remote switches
  • Optional communications available include: Ethernet, WiFi-802.11b/g, USB, Bluetooth, or 4-20 mA

Documentation

Doran PFS Series Brochure Doran 2200CW Manual Doran 2200CW Brochure

2 Year Limited Manufacturer's Warranty
Capacity:
500 lb
Readability:
0.1 lb
Units:
lb, kg, oz, g, lb:oz
Base Dimension:
24" x 24"
NTEP:
Yes
Class:
III
Indicator NTEP CC:
06-101
Base NTEP CC:
13-110
Measurement Canada Approved:
Yes
Load Cell Excitation:
5 VDC
Wiring Style:
Hard Wire
Power:
Standard US power cord, 100 – 240VAC 50/60Hz
Optional Power:
Rechargeable battery (not included, must be ordered separately)
IP Rating:
IP69K
Buttons:
Tare, Gross/Net, Zero, Print, Units, Accum, Clear Prod Id, Set Point, Over, Under, Enter, Decimal Point, and Numeric Keypad 0-9
Display Type:
LED
Display Size:
0.8" tall
Standard Communication:
Two Bi-directional RS-232 ports standard (hard wire)
Scale Style:
Portable push cart with swivel and locking casters
Cart Construction:
Welded stainless steel frame
Cart Height:
59"
Handle Height:
41.5″
Part Number:
22500CW-PFS
Brand:
Doran
