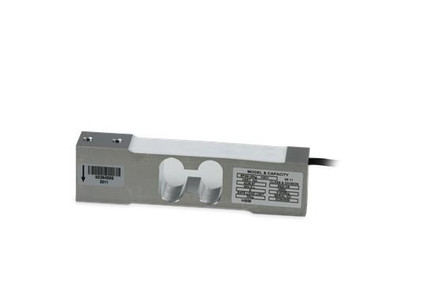

HBM SP4M-3kg Single Point Load Cell, OIML

MSRP: $250.00
$237.50
(Save $12.50)
Part #:
121396
Availability:
Typically ships in 2-3 days

Features

  • 3 kg capacity rating
  • Anodized aluminum construction
  • Environmentally sealed IP67
  • 2.0 mV/V ­output
  • Load cell cable length 3.1 m
  • Safe overload up to 150% capacity

Interchange

  • Anyload 108TA
Common Applications
  • OEM
  • Bench Scales
  • Conveyor Scales
Manufacturer:
HBM
Model:
SP4M
Approvals:
OIML, FM
Capacity:
3 kg
Safe Overload:
150% capacity
Length:
5.92"
Height:
1.57"
Width:
1.00"
Hole Thread:
M6 Depth16
Construction:
Anodized Aluminum
Cable Color Code:
Blue +Excitation, Black €“Excitation, White +Signal, Red €“Signal, Green +Sense, Grey €“Sense
Rated Excitation:
5- 10 VDC (15 V maximum)
Full Scale Output:
2.0 mV/V
Output Resistance:
350 (± 3) ohms
Input Resistance:
350 ohms
Compensated Temperature Range:
14°F to 104°F (-10°C to 40°C)
Seal Type:
Environmentally sealed
IP Rating:
IP67
Cable Length:
3.1 m
