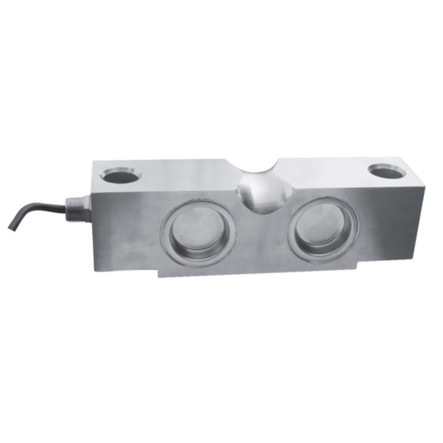

Keli KL-58 QSB-A-25Klb 25,000 lb Double Ended Beam Load Cell, NTEP
Features
- 25,000 lb capacity rating
- NTEP Approved CC 13-050
- Alloy steel construction, nickel plated
- IP68 rating
- 3 mV/V output
- Safe overload 150% capacity
- Maximum overload 200% capacity
- Load cell cable length approximately 40 ft
Common Applications
- Truck Scales
- Tank Scales
Interchange
- Sensortronics 65058
- Zemic H9N
- Anyload 102BH
1 year limited manufacturer's warranty
- Manufacturer:
- Keli
- Model:
- QSB-A-25Klb
- Capacity:
- 25,000 lb
- Safe Overload:
- 150% capacity
- Ultimate Overload:
- 200% capacity
- Construction:
- Alloy steel
- Finish:
- Nickle plating
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 10-12 VDC (maximum of 15 V)
- Full Scale Output:
- 3 mV/V
- Output Resistance:
- 702 (+/- 3) ohms
- Input Resistance:
- 750 (+/-10) ohms
- Operating Temperature Range:
- -10 to +40¢Æ
- IP Rating:
- IP68
- Insulation Resistance:
- 5000 megohms
- Cable Length:
- Approximately 40 ft
- Dimensions LxWxH (mm):
- 196.9 x 42.9 x 49.3
