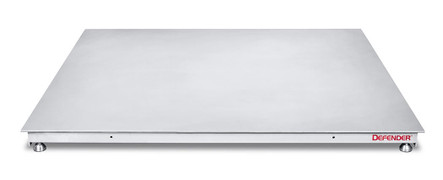

The Ohaus Defender 3000 stainless steel floor scale is the perfect solution for your industrial applications in washdown environments. These scales are built with premium-quality 304 stainless steel to ensure minimal flexing even under substantial loads, providing reliable and consistent performance over extended periods. Platforms are available in sizes of 3x3 ft, 4x4 ft, and 5x5 ft. For added convenience, ramps and mounting plates are also available as optional accessories to enhance the usability of the Defender 3000 Floor Platforms.
Features
- 5 ft. x 5 ft. platform
- 304 stainless steel flat surface platform
- IP68 load cells and junction box for washdown applications
- Four alloy steel shear beam load cells with top-adjustable height swiveling ball-in cup design
Documentation
1 Manufacturer's Limited Warranty
- Capacity:
- 2,500 lb / 1,250 kg
- NTEP:
- Yes
- Class:
- III
- NTEP CC:
- 08-048A2
- Load Cell:
- 4 x IP68 alloy steel, shear beam
- Junction Box:
- IP68, 304 stainless steel, with 20’ EasyConnect cable
- Maximum Central Load:
- 160% of maximum capacity
- Safe Endload Capacity:
- 100% of maximum capacity
- Platform Construction:
- 0.196 inch 304 Stainless Steel, flatsurface, fixed top plate
- IP Rating:
- IP68 Platform, IP68 Junction Box
- Platform Dimensions (W x H x D):
- 5 ft x 5 ft x 3.5 in.
- Weight:
- 388 lb / 176 kg
- Operating Temperature:
- 14,° to 104,°F / -10,° to 40,°C
- Brand:
- OHAUS
- Model:
- i-DF2500C1X
