Optima OP-336 500 lb Alloy Steel Single Ended Beam Load Cell

$228.00
Part #:
OP-336-0.5
Availability:
Typically ships in 1-2 days

Optima OP-336 500 Alloy Steel Single Ended Beam Load Cell

Features

  • 500 lb capacity rating
  • Alloy steel construction
  • Load cell cable length 20 feet
  • Safe overload up to 150% capacity

Interchange

  • Artech 50210
  • Revere 5503
  • Revere 9503
  • Rice Lake RL50210
  • Rice Lake RL60040SST
  • Sensortronics 60040
  • Coti Global Sensors CG-60040
 Documentation

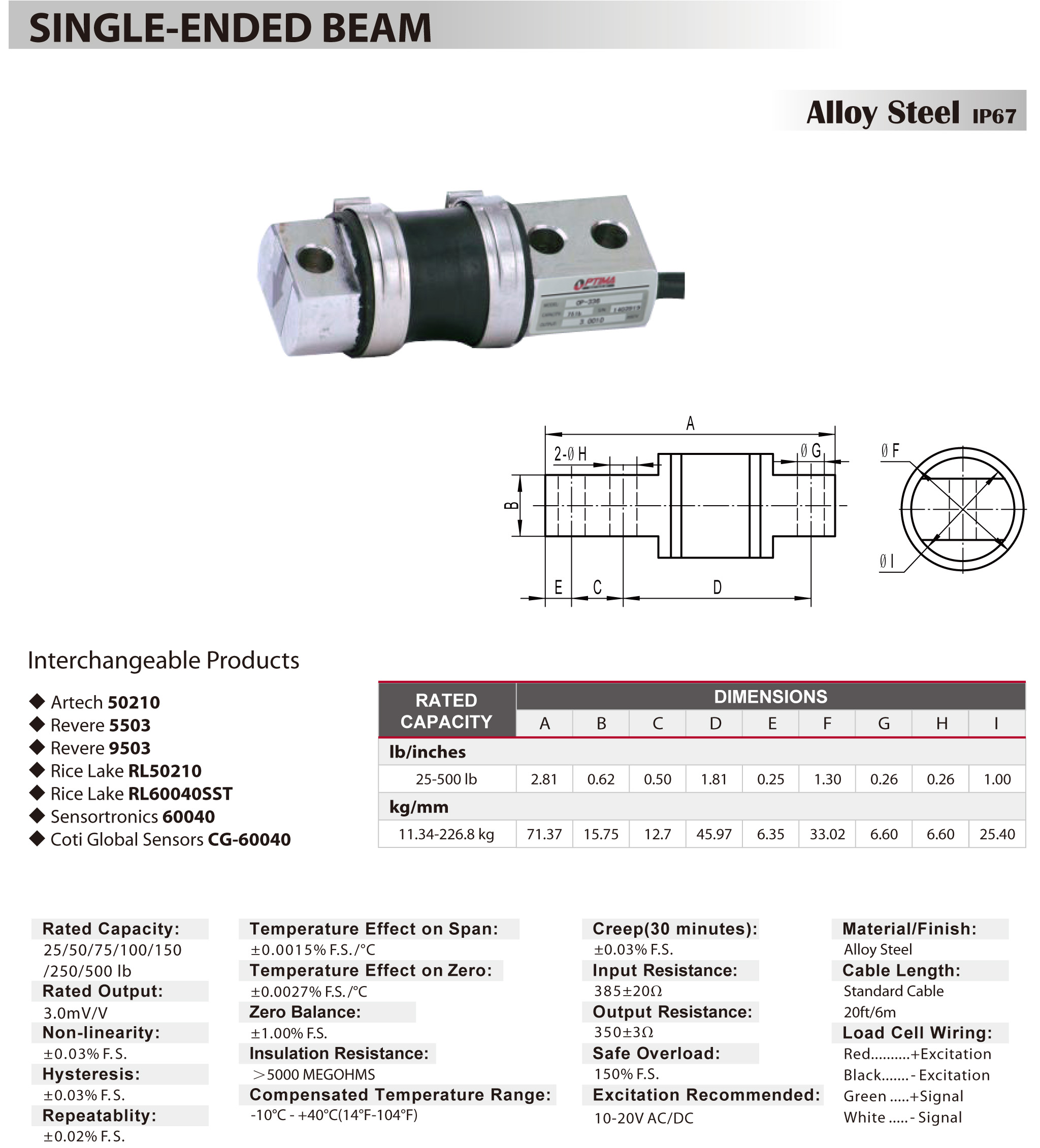

OP-336 Datasheet

1 year limited manufacturer's warranty
Capacity:
500 lb
Safe Overload:
150% capacity
Repeatability:
±0.02 Full scale
Operation Temperature:
-10‚° C - +40‚° C
Dimensions:
2.81 x 1.30 x 1.30 in
Construction:
Alloy steel
Cable Color Code:
Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
Full Scale Output:
3.0 mV/V
Input Resistance:
385±20 ohms
Output Resistance:
350±3 ohms
Insulation Resistance:
> 5000 megohms
Cable Length:
20 ft
Manufacturer:
Optima
Model:
OP-336
