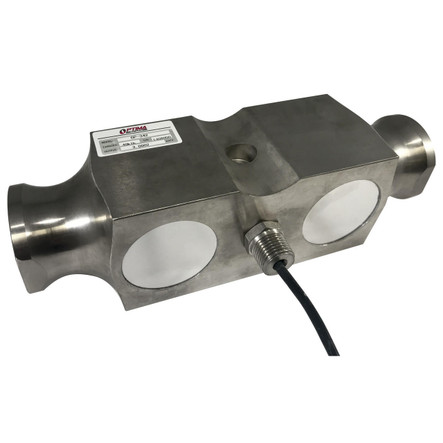

Optima OP-342 75,000 lb Alloy Steel Double Ended Beam Load Cell, NTEP, Class IIIL

MSRP: $860.00
$821.73
(Save $38.27)
Part #:
OP-342-75
Availability:
Typically ships in 1-2 days

Optima OP-342 75,000 lb Alloy Steel Double Ended Beam Load Cell

Features

  • NTEP CC: 15-022
  • Class IIIL
  • 75,000 lb capacity rating
  • Alloy steel construction
  • IP67 rating
  • Load cell cable length 60 feet
  • Safe overload up to 150% capacity

Interchange

  • Artech 80210
  • Coti Global Sensors CG-5223
  • Revere 5223
  • Rice Lake RL75223
  • Sensortronics 65040A-XX-1127W
  • Thurman TSC 800
  • Totalcomp GDE23
  • Totalcomp TDE23
  • Unibridge DL90000
Documentation

OP-342 Datasheet

1 year limited manufacturer's warranty
NTEP:
Yes
Class:
IIIL
Capacity:
75,000 lb
Safe Overload:
150% capacity
Repeatability:
±0.01 Full scale
Operation Temperature:
-10° C - +40° C
Dimensions:
10.25 x 3.00 x 2.40 in
Construction:
Alloy steel
Finish:
Nickel plated
IP Rating:
67
Cable Color Code:
Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
Full Scale Output:
3.0 mV/V
Input Resistance:
700±10 ohms
Output Resistance:
700±5 ohms
Insulation Resistance:
> 5000 megohms
Cable Length:
40 ft
Manufacturer:
Optima
Model:
OP-342
