Optima OP-343 40,000 lb Alloy Steel Double Ended Beam Load Cell, NTEP, Class IIIL

MSRP: $590.00
$563.75
(Save $26.25)
Part #:
OP-343-40
Availability:
Typically ships in 1-2 days

Optima OP-343 40,000 lb Alloy Steel Double Ended Beam Load Cell

Features

  • NTEP CC: 15-022
  • Class IIIL
  • 40,000 lb capacity rating
  • Alloy steel construction
  • Nickel plated
  • IP67 rating
  • Load cell cable length 40 feet
  • Safe overload up to 150% capacity

Interchange

  • Airweigh AW900
  • Artech 80210
  • Celtron DLB
  • Rice Lake RL75040
  • Sensortronics 65040A
  • Thurmna TSC 840
  • Totalcomp TDE40
  • Coti Global Sensors CG-BE40
Documentation

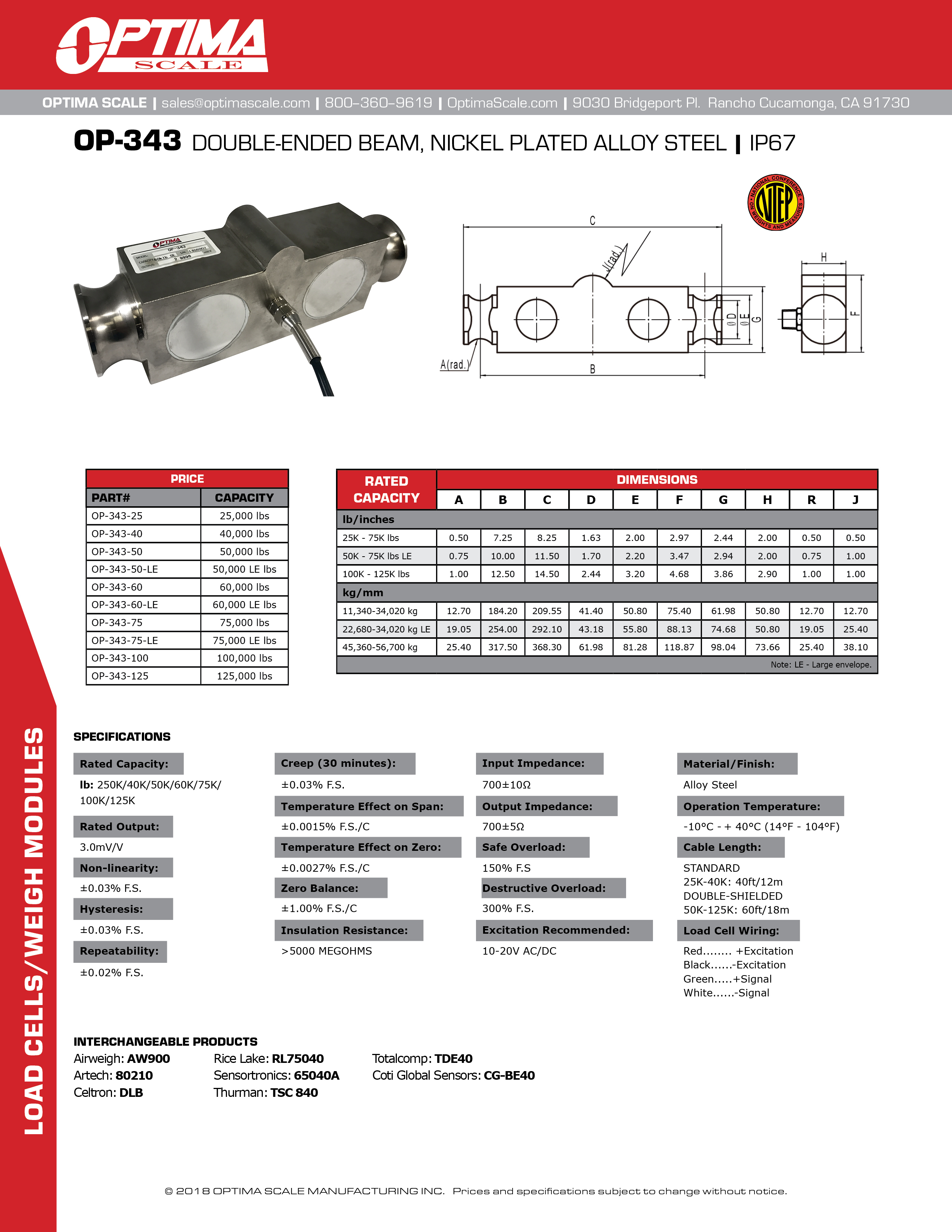

OP-343 Datasheet

1 year limited manufacturer's warranty
NTEP:
Yes
Class:
IIIL
Capacity:
40,000 lb
Safe Overload:
150% capacity
Repeatability:
±0.02 Full scale
Operation Temperature:
-10° C - +40° C
Dimensions:
8.25 x 2.97 x 2.00 in
Construction:
Alloy steel
Finish:
Nickel plated
IP Rating:
67
Cable Color Code:
Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
Full Scale Output:
3.0 mV/V
Input Resistance:
700±10 ohms
Output Resistance:
700±5 ohms
Insulation Resistance:
> 5000 megohms
Cable Length:
40 ft
Manufacturer:
Optima
Model:
OP-343
