Optima Scale OP-915BW-1824-500 Portable Bench Scale with Casters 18" x 24", 500 lb x 0.1 lb, NTEP Class III

MSRP: $940.00
$898.17
(Save $41.83)
Part #:
OP-915BW-1824-500
Availability:
Typically ships in 1-2 days

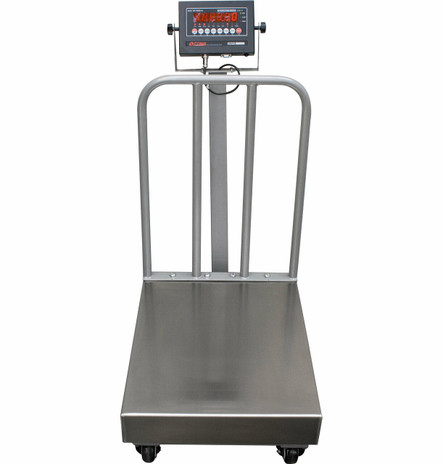

Optima Scale OP-915BW-1824-500 Portable Bench Scale with Casters

The Optima OP-915BW series offers an affordable solution for a heavy duty bench scale. They can be utilized for counting, checkweighing, and general weighing making them an ideal solution for a variety of industrial applications. The OP-915BW can be combined with a printer or remote display due to the RS-232 communication port. The system is IP65 rated and backed with a one year manufacturers warranty. The OP-915BW series is NTEP approved for use in legal for trade applications. The BW series offers simple portability with the attached casters and handrail.

Features

  • NTEP Class III
  • Base CC 11-016
  • Indicator CC 12-004A1
  • Casters and handrail
  • Heavy duty steel platform with stainless steel weighing pan
  • High resolution
  • Level bubble and adjustable feet
  • Overload protection
  • Aluminum environmentally sealed single point load cell
  • 1" high 6 segment wide angle viewing LED display
  • AC adapter included
  • Weighing units: (LED:kg/lb) ( LCD:lb/kg/g/oz/lb:oz)
  • Gross/Tare/Pre-Set Tare/Zero
  • Multiple hold functions
  • Overload / Underload alarm
  • Splash proof keyboard and display
  • Full duplex RS-232 that can connect to a remote display or printer
  • Rechargeable battery (100 hours of operation per charge)
  • 1 year warranty

Functions

  • General weighing
  • Accumulation
  • Animal Weighing
  • Checkweighing
  • Counting
Options
  • Printer
  • Remote Display
  • The unit is standard as an LED display but an LCD display can be ordered but it must be specified at the time of placing the order.

Documentation

915BW Bench Scale Data Sheet 900 Series Indicator Manual

1 year manufacturer's warranty
Capacity:
500 lb
Readability:
0.1 lb
NTEP:
Yes
Class:
III
Stabilization Time:
less than 2 seconds
Weighing Units:
lb, kg
Display Type:
LED
Communication:
Full Duplex RS-232 Serial Port
Communication Specifications:
9600, 4800, 2400, 1200 bps; 8 data bits, 1 stop bits, no parity, no handshaking
IP Rating:
IP65
Construction:
Stainless steel weigh pan with heavy duty steel frame
Calibration:
External
Platform Size:
18" x 24" x 8.5"
Weight:
78 lb
Power:
110/220 AC adapter or optional 6V 4Ah rechargeable lead acid battery
Operating Temperature:
-10 to +40 C
Brand:
Optima
Model:
OP-915BW-1824-500
