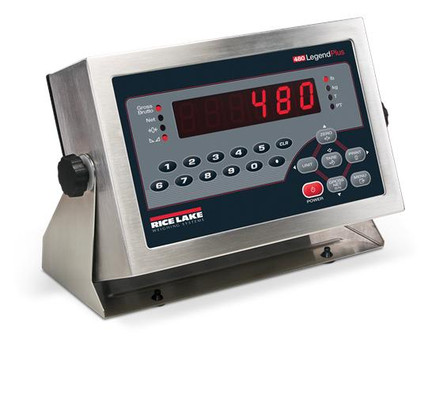

Rice Lake 480 Legend Plus Digital Weight Indicator with Digital I/O and Relay Outputs, NTEP Class III

MSRP: $1,125.00
$1,069.00
(Save $56.00)
Part #:
164590
Availability:
Typically ships in 1-2 days

Rice Lake 480 Legend Plus Configurable Digital Weight Indicator with Digital I/O and Relay Output

The Rice Lake 480 Legend is a great mid level configurable indicator. The 480 Legend is ideal for many industrial weighing applications from general weighing to simple batching (optional relay card required for batching).  The enclosure is constructed of heavy gauge stainless steel and boasts a NEMA 4X/IP66 rating making it a good fit for dirty, wet environments.  The bright red LED display is easy to see even in conditions where lighting is poor and a basic keypad makes operating this indicator easy. It comes standard with two independent RS-232 and 20mA serial ports for communication with peripheral devices and there are additional options available to expand the communication capabilities of the indicator.  The 480 Legend also has the functionality for local and remote operation when two units are connected together. The Rice Lake 480 Legend is NTEP approved and can be used in Legal for Trade applications.

Features

  • Pre-installed Digital I/O and Relay Output
  • NEMA Type 4X/IP66, heavy-gauge stainless steel
  • 7 button keypad
  • Displayed resolution up to 100,000
  • Supports up to (4) 350 ohm load cells or (8) 700 ohm load cells
  • Two independent serial ports, RS-232 and 20mA
  • LED display, 0.8 in, six digit, seven segment
  • NEMA Type 4X/IP66 rated stainless steel housing
  • Display units in lb, kg, g, oz, tn or t
  • PreVent breather vent
  • Programmable printer ticket formats can perform gross, net, accumulator and setpoints
  • Configurable with Revolution software
  • Full Numeric Keypad
  • Five built in options for continuous stream formats
  • Operator functions through menu for audit trail, preset tare, unit ID, accumulator, time and date, setpoints, communications and print formats
  • 8 configurable setpoints with sequenced batch engine
  • Adaptive filter or rolling average filter
  • Optional rechargeable Lithium Ion battery

Approvals

  • Measurement Canada AM-5892
  • Accuracy Class III/IIIHD,10,000d
  • NTEP CC 12-123 Accuracy Class III/IIIL, 10,000d
  • OIML R76/2006-NL1-12.48,
  • EU Test Certificate TC8322
  • Accuracy Class III, 10,000d
  • CE Marked
  • UL/cUL Listed
Weighing Applications
  • General Weighing
  • Batching / Setpoints
  • Accumulation Weighing
2 year manufacturer's limited warranty
NTEP CC:
12-123A1 Class III/IIIL
NTEP:
Yes
Maximum Displayed Resolution:
1:100,000
Maximum Internal Resolution:
523,000 counts
Maximum Approved Resolution:
1:10,000
Weighing Units:
lb, kg, g, oz, tn, t
System Linearity:
Within 0.01 % of full scale
Display Type:
Red LED display, 0.8" (20mm), six-digit, seven-segment
Keys on Display:
power, menu, zero, tare, gross/net, unit, print
Status Annunciators:
Gross, net, center of zero, stand still, lb, kg, tare, preset tare
Excitation Voltage:
5VDC, 8 x 350 ohm or 16 x 700 ohm load cells
Analog Signal Input Range:
Æ’‚¬Å¡±7mV/V
Analog Signal Sensitivity:
0.1 uV/graduation minimum, 0.5 uV/graduation recommended
A/D Sample Rate:
5, 10, 20, 40Hz, software selectable
IP Rating:
IP66
NEMA Type:
4X
Communication:
Port 1 - RS-232, Port 2 - RS-232 or 20 mA
RS-232 baud rates:
1200, 2400, 4800, 9600,19200, 38400
RS-232 bits:
7 or 8
RS-232 Parity:
even, odd, or none
Operating Temperature Range:
14 °F to 122 °F / -10 °C to 50 °C
Certified Operating Temperature Range:
14 °F to 104 °F / -10 °C to 40 °C
Power:
115 VAC 50/60 Hz
Power Consumtion:
8 W
Housing Dimensions:
9.5" x 6" x 2.75"
Weight:
6.4 lb
Brand:
Rice Lake
Model:
480 Legend 115 VAC
Part Number:
164590
