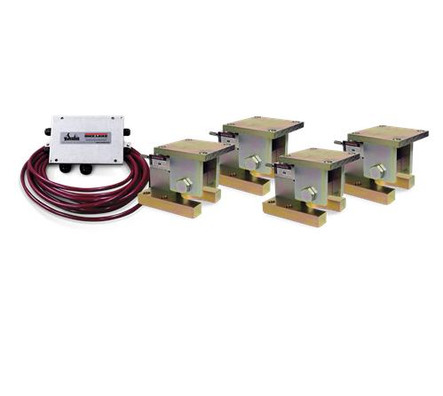

Rice Lake RL1810 Series Mild Steel Weigh Module Kit, (4) 10,000 lb Capacity Modules
Rice Lake RL1800 Series weigh module kits are best suited for light to medium weight tanks and hoppers. This Rice Lake module kit includes four RL32018-10Klb load cells, one JB4SS stainless steel signal trim j-box, four RL1805 zinc plated mild steel compression mounts, and 25 feet of hostile environment EL147HE SURVIVOR® load cell cable. The RL32018 series load cells are environmentally sealed with an IP66 rating, are constructed of high alloy steel with Nickle plating, and have a 20 ft long load cell cable.
Features
- Light to medium capacity tank and hopper weighing applications
- 40,000 lb combined capacity rating
- Recommended scale capacity 20,000 lb
- Recommended readability 5 lb
- Four 10,000 lb rated load cells / modules
- High alloy steel and Nickle plated load cells
- IP66 rated load cells
- Load cell cable length 20 ft
- Load cell safe overload up to 150% capacity
- Three Zinc plated mild steel RL1805 compression mounts
- 25 ft hostile environment EL147HE Survivor load cell cable for connecting J-box and indicator
- Signal trim stainless steel junction box
- Single ended beam design
- Simple installation
- 2 year limited warranty
- NTEP Certified 1:5,000 Class III Multiple Cell
Documentation
Rice Lake RL32018 Datasheet Rice Lake RL1800 Datasheet Rice Lake RL1800 Installation Guide
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL1810 Weigh Modules (4) 10,000 lb
- NTEP:
- Yes
- Class:
- III
- Combined Capacity Rating:
- 40,000 lb
- Recommended Capacity of Scale:
- 20,000 lb
- Individual Load Cell Capacity Rating:
- 10,000 lb
- Load Cell Safe Overload:
- 150% capacity
- Load Cell Rated Excitation:
- 5-10 V AC/DC (15 V max)
- Load Cell Output:
- 3 mV/V
- Cell Output Resistance:
- 350 (± 3) ohm
- Cell Input Resistance:
- 400 (± 20) ohm
- Seal Type:
- Environmentally Sealed
- IP Rating:
- IP66
- Load Cell Cable Length:
- 20 ft
- Load Cell Other Approvals:
- cFM
- Cable Length (junction box to indicator):
- 25 ft
- Load Cell Color Code:
- Red = +Excitation, Black = -Excitation, Green = +Signal, White = -Signal
