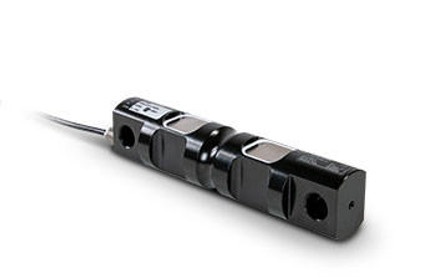

Rice Lake RL72020-100K-Painted Double Ended Beam Load Cell, NTEP Class III/IIIL

MSRP: $1,615.00
$1,534.25
(Save $80.75)
Part #:
201776
Availability:
Typically ships in 1-2 days

The Rice Lake RL72020 Painted Double Ended Beam Load Cells are a high-performance weighing solution designed for tank and hopper weighing, conveyor systems, and vehicle scales. This load cell boasts an IP67 rating and a paint coating for extra corrosion resistance and durability. Their double-ended beam design ensures uniform load distribution, minimizing eccentric load effects and improving overall weighing accuracy.

Features

  • Finished with MLC paint coating for extra resistance to corrosion
  • High alloy steel nickel plated construction
  • Environmentally sealed
  • IP 67 rating
  • Load cell cable length 30 ft
  • Safe overload up to 150% capacity
  • FM approved

Interchange

  • RICE LAKE WEIGHING SYSTEMS RL70000*
  • VPG REVERE 5103*
  • ARTECH 70210
  • METTLER-TOLEDO SLD 430

Documentation

Rice Lake RL72020-Painted Data Sheet

2 year limited manufacturer's warranty
Capacity:
100,000 lb
NTEP:
Yes
Class:
III / IIIL
CC:
21-064
Safe Overload:
150% capacity
Cable Color Code:
Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
Rated Excitation:
5 to 10 VDC (Maximum of 15)
Full Scale Output:
3 mV/V
Input Resistance:
770 +/- 10 ohms
Output Resistance:
700 +/- 5 ohms
Insulation Resistance:
5000 megohms
Construction:
High alloy steel, nickel plated
Finish:
MLC coating
Seal Type:
Environmentally sealed
IP Rating:
IP67
Combined Error:
+/- 0.02% full scale
Cable Length:
30 ft
Part Number:
201776
Approvals:
FM
Manufacturer:
Rice Lake Weighing Systems
Model:
RL72020-Painted
