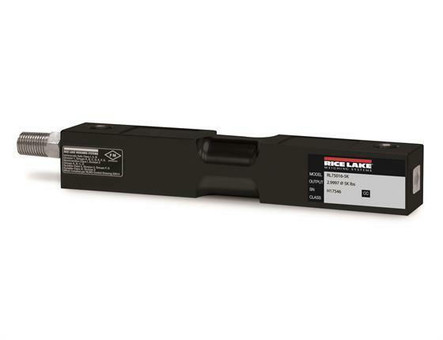

Rice Lake RL75016-25K Painted Double Ended Beam Load Cell

MSRP: $662.00
$628.90
(Save $33.10)
Part #:
187067
Availability:
Typically ships in 1-2 days

The Rice Lake RL75016 double ended beam load cells are designed with center loading which is most commonly used in applications such as tank, hopper, and truck scales. This Rice Lake series of load cells have a non threaded hole, come with a 25 ft load cell cable, and are constructed of painted alloy steel.

Features

  • Painted with a proprietary coating for extra protection in dry chemical applications
  • Alloy steel construction
  • Environmentally sealed IP 67 rating
  • Load cell cable length 25 ft
  • Safe overload up to 150% capacity

Interchange

  • VPG Sensortronics 65016
  • VPG Revere 5203
  • VPG Celtron DSR

Documentation

Rice Lake RL75016 Painted Load Cell Data Sheet

2 year limited manufacturer's warranty
Capacity:
25,000 lb
Safe Overload:
150% capacity
Safe Side Load:
100 % capacity
Cable Color Code:
Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
Rated Excitation:
5-10 VDC (maximum of 15 V)
Full Scale Output:
3.0 mV/V
Output Resistance:
700 (± 5) ohms
Input Resistance:
770 (± 10) ohms
Insulation Resistance:
5000 megohms
Construction:
Alloy steel
Finish:
MLC coated / Painted
IP Rating:
IP67
Seal Type:
Environmentally sealed
Cable Length:
25 ft
Other Approvals:
cFM
Part Number:
187067
Manufacturer:
Rice Lake Weighing Systems
Model:
RL75016-25K-Painted
