Rice Lake RLTM-2500lb Stainless Steel Weigh Module, 2500 lb Module, NTEP Class III

MSRP: $1,085.00
$1,030.75
(Save $54.25)
Part #:
159290
Availability:
Typically ships in 1-2 days

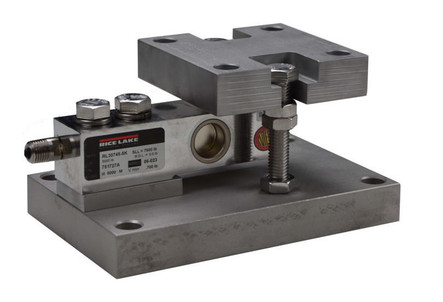

Rice Lake RLTM Stainless Steel Weigh Module is best suited for medium to heavy capacity tanks, bins and hoppers. This Rice Lake module includes a RL32018S-T load cell and a RLTM stainless steel compression mount. The RL32018S-T Series load cell gives you accuracy and dependability in some of the harshest environments. The load cell is hermetically sealed with an IP69K rating, constructed of stainless steel, and have a 30 ft long load cell cable. With the entire design being stainless steel and an extreme protection rated load cell this module is an ideal solution for exterior tank scales or scales in high corrosion and wash-down environments.

Features

  • 1 fully stainless steel module
  • Overload and uplift protection
  • Medium to heavy capacity tank and hopper weighing applications
  • Stainless steel construction
  • Hermetically sealed
  • IP 69K rating
  • Load cell cable length 30 ft
  • Safe overload up to 150% capacity
  • FM approved

Documentation

Rice Lake RL32018S-T Single Ended Beam Load Cell Specifications

Rice Lake RLTM Series Weigh Module Specifications

Rice Lake RLTM Weigh Module Installation Guide

2 year limited manufacturer's warranty
Capacity:
2500 lb
NTEP:
Yes
Class:
III
Load Cell Safe Overload:
150% capacity
Load Cell Rated Excitation:
5-10 VDC
Load Cell Output:
2 mV/V
Cell Output Resistance:
350 ±5 ohm
Cell Input Resistance:
400 ±20 ohm
Load Cell Seal Type:
IP69K Hermetically Sealed
Load Cell Cable Length:
30 ft
Load Cell Color Code:
Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal
Part Number:
159290
Model:
RLTM-2500lb
Manufacturer:
Rice Lake Weighing Systems
