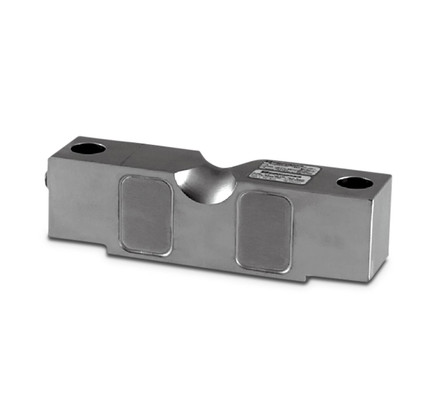

Sensortronics VPG 65058A-10K Double Ended Beam Load Cell

MSRP: $652.00
$619.40
(Save $32.60)
Part #:
17287
Availability:
Typically ships in 1-2 days

The Sensortronics VPG 65058A double ended beam load cell is constructed of alloy steel and features a environmental seal with an IP67 rating. The double-ended beam design ensures even load distribution and minimizing eccentric load effects. Capacities of this model range for 10,000 lbs all the up to 125,000 lbs. This load cell is commonly utilized with medium to heavy capacity tanks, hoppers, and truck scales.

Features

  • Alloy steel with nickel plated construction
  • Environmentally sealed with an IP67 rating
  • Load cell cable length 35 ft
  • Safe overload up to 150% capacity

Documentation

Sensortronics 65058A Data Sheet

1year limited manufacturer's warranty
Capacity:
10,000 lb
Safe Overload:
150% capacity
Safe Side Load:
100 % capacity
Cable Color Code:
Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
Rated Excitation:
5-10 VDC (maximum of 15 V)
Full Scale Output:
3.0 mV/V
Output Resistance:
699 to 707 ohm
Input Resistance:
686 to 714 ohm
Insulation Resistance:
5000 megohms
Construction / Finish:
Alloy steel, nickel plated
Seal Type:
Environmentally sealed
IP Rating:
IP67
Cable Length:
35 ft
Approvals:
FM
Part Number:
17287
Manufacturer:
VPG Sensortronics
Model:
65058A
