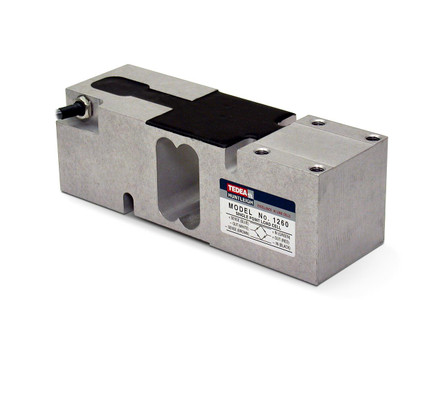

The Tedea-Huntleigh VPG 1260S single point load cell is constructed of anodized aluminum which allows it to be lightweight yet durable. It features an environmental seal with an IP66 rating. It is capable of being used with up to a 2' x 2' base and features a safe overload rating up to 150% of the rated capacity. The Tedea-Huntleigh 1260S is NTEP class III approved for us in legal for trade applications.
Features
- Anodized aluminum construction
- NTEP Certified 1:10,000 Class III
- Environmentally sealed, IP66
- 1 year limited manufacturer's warranty
- Safe overload up to 150% capacity over center loading pin
- 10 ft of cable
- Max platform size of 24 in x 24 in
Interchange
- Rice Lake RL1260
- Rice Lake RL26018A
- VPG 1260
Documentation
1 year limited manufacturer's warranty
- Manufacturer:
- VPG Tedea-Huntleigh
- Model:
- 1260S-250kg
- Approvals:
- FM, NTEP 1:10,000 Class III
- Capacity Rating:
- 250 kg
- Safe Overload:
- 150% capacity
- Length:
- 188 mm
- Height:
- 52 mm
- Width:
- 63 mm
- Thredding:
- 5/16-18 UNC
- Construction / Finish:
- Anodized Aluminum
- Cable Color Code:
- Green +Excitation, Black €“Excitation, Red +Signal, White €“Signal, Blue +Sense, Brown €“Sense
- Rated Excitation:
- 5 to 10 VDC (15 V maximum)
- Full Scale Output:
- 2.0 mV/V
- Output Resistance:
- 350 (± 3) ohm
- Input Resistance:
- 415 (± 15) ohm
- Insulation Resistance:
- 2,000 megohms
- Compensated Temperature Range:
- 14 °F to 104 °F (-10 °C to 40 °C)
- Operating Temperature Range:
- 0 °F to 150 °F (-18 °C to 65 °C)
- Seal Type:
- Environmentally sealed, IP66
- Total Error:
- 0.02 % full scale
- Cable Length:
- 10 ft
- Cable Diameter:
- 0.220 in Polyurethane jacket
- Max Platform Size:
- 24" x 24"
