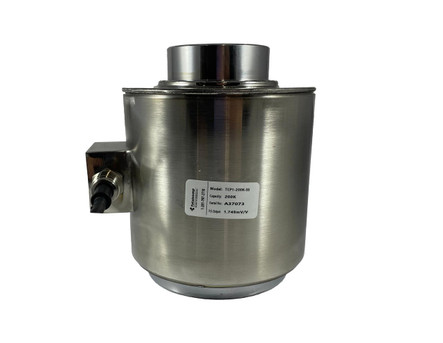

Totalcomp TCP1-200K-SS Canister Load Cell, 200,000 lb

MSRP: $1,848.00
$1,663.20
(Save $184.80)
Part #:
1864
Availability:
Typically ships in 1-2 days

Totalcomp TCP1 and TCSP1 series are a tough canister load cell designed for high-capacity industrial use. They are constructed with welded, hermetically sealed, and stainless steel casings which enables them to perform in extreme environmental conditions. TCP1 and TCSP1 series load cells are intended for use with truck, track hopper, and tank scales.

Features

  • Stainless steel
  • 1.75 mV/V output
  • IP67 rating, hermetically sealed
  • Load cell cable length 30 ft
  • Safe overload up to 150% capacity

Interchange

  • Revere model CP
  • TI model 392

Documentation

Totalcomp TCP1 and TCSP1 Datasheet

1 year limited manufacturer's warranty
Capacity:
200,000 lb
Construction:
Stainless steel
Cable Color Code:
Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal, Bare = Shield
Rated Excitation:
10 VDC (maximum of 15 V)
Full Scale Output:
1.75 mV/V
Input Resistance:
450 ohms
Output Resistance:
480 ohms
IP Rating:
IP67
Seal Type:
Hermetically sealed
Combined Error:
+/- 0.15 % full scale
Nonlinearity:
+/- 0.15 % full scale
Hysteresis:
+/- 0.03 % full scale
Zero Balance:
+/- 1.00 % full scale
Safe Overload:
150 % full scale
Ultimate Overload:
400 % full scale
Safe Temperature Range:
-12C to 43C
Operating Temperature Range:
-12C to 43C
Cable Length:
30 ft
Manufacturer:
Totalcomp
Model:
TCP1-200K-SS
Part Number:
1864
