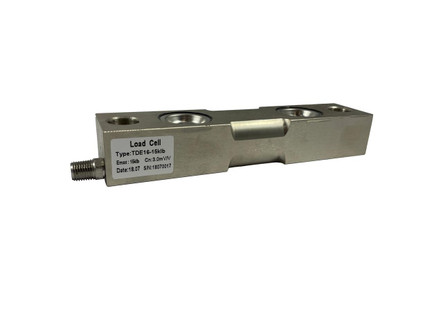

Totalcomp TDE16 series double ended beam load cells are commonly used in medium to heavy capacity weighing applications. Totalcomp TDE16 series load cells have an IP67 rating, 50 ft of cable, and a 150% overload rating.
Features
- Alloy steel nickel plated construction
- Through holes
- 3 mV/V output
- IP67 rating
- Load cell cable length 50 ft
- Safe overload up to 150% capacity
Interchange
- Sensortronics 65016
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 5000 lb
- Construction:
- Alloy steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal
- Rated Excitation:
- 10 VDC (maximum of 20V)
- Full Scale Output:
- 3 mV/V
- Input Resistance:
- 700 ohms
- Output Resistance:
- 700 ohms
- IP Rating:
- IP67
- Combined Error:
- 0.02 % full scale
- Nonlinearity:
- 0.03 % full scale
- Hysteresis:
- 0.02 % full scale
- Zero Balance:
- +/- 1.00% full scale
- Safe Overload:
- 150 % full scale
- Ultimate Overload:
- 300 % full scale
- Safe Temperature Range:
- -10C to 40C
- Operating Temperature Range:
- -20C to 60C
- Cable Length:
- 50 ft
- Manufacturer:
- Totalcomp
- Model:
- TDE16-5K
- Part Number:
- 2364
