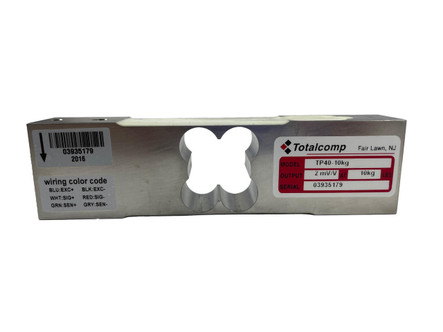

Totalcomp TP40 series single point load cells are constructed from anodized aluminum with an IP67 protection rating. Totalcomp TP40 series load cells include a 10 ft cable and safe overload rating of up to 150% capacity.
Features
- Anodized aluminum construction
- 2 mV/V output
- IP67 rating
- Load cell cable length 10 ft
- Safe overload up to 150% capacity
- Mounting screws are 1/4-20 UNC(coarse) with 3/4" spacing on both top and bottom
Interchange
- Tedea 1040
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 75 kg
- Construction:
- Anodized aluminum
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, Orange = + Sense, Blue = - Sense, White = + Signal, Red = - Signal, Yellow = Shield
- Rated Excitation:
- 10 VDC (maximum of 15 V)
- Full Scale Output:
- 2 mV/V
- Input Resistance:
- 350 ohms
- Output Resistance:
- 350 ohms
- IP Rating:
- IP67
- Seal Type:
- Environmentally sealed
- Total Error:
- 0.05 % full scale
- Safe Overload:
- 150 % full scale
- Ultimate Overload:
- 300 % full scale
- Safe Temperature Range:
- -10C to 40C
- Cable Length:
- 10 ft
- Manufacturer:
- Totalcomp
- Model:
- TP40-75kg
- Part Number:
- 3062
