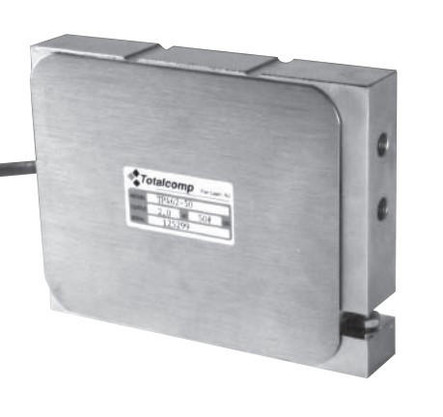

Totalcomp TP462-5 Single Point Load Cell, 5 lb

MSRP: $524.59
$472.13
(Save $52.46)
Part #:
1236
Availability:
Typically ships in 1-2 days

Totalcomp TP462 series single point load cells are constructed of aluminum and feature an IP67 protection rating. Totalcomp TP462 series load cells include a 10 ft cable and a 2 mV/V output.

Features

  • Aluminum construction
  • 2 mV/V output
  • IP67 rating
  • Load cell cable length 10 ft

Interchange

  • Revere 462

Documentation

Totalcomp TP462 Datasheet

1 year limited manufacturer's warranty
Capacity:
5 lb
Construction:
Aluminum
Cable Color Code:
Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Orange = Shield
Rated Excitation:
15 VDC
Full Scale Output:
2 mV/V
Input Resistance:
350 ohms
Output Resistance:
350 ohms
IP Rating:
IP67
Seal Type:
Environmentally sealed
Safe Temperature Range:
0 F to 150 F
Cable Length:
10 ft
Manufacturer:
Totalcomp
Model:
TP462-5
Part Number:
1236
