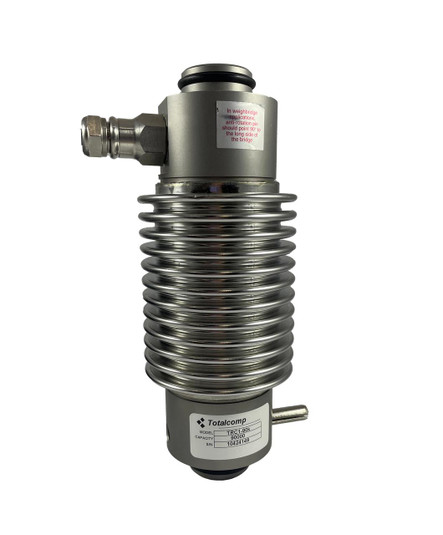

Totalcomp TRC1 series canister load cells are constructed of alloy steel with nickel plating, 50 ft of cable, and are backed with an IP67 rating. Totalcomp TRC1 series load cells are interchangeable with the Flintec RC1 load cells.
Features
- Alloy steel, nickel plated
- 2 mV/V output
- IP67 rating
- Load cell cable length 50 ft
- Safe overload up to 150% capacity
Interchange
- Flintec RC1
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 56,000 lb
- Construction:
- Alloy steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 10 VDC (maximum of 15 V)
- Full Scale Output:
- 2 mV/V
- Input Resistance:
- 385 ohms
- Output Resistance:
- 350 ohms
- IP Rating:
- IP67
- Combined Error:
- +/- 0.03 % full scale
- Nonlinearity:
- +/- 0.02 % full scale
- Hysteresis:
- +/- 0.03 % full scale
- Zero Balance:
- +/- 1.00 % full scale
- Safe Overload:
- 150 % full scale
- Ultimate Overload:
- 300 % full scale
- Compensated Temperature Range:
- -10C to 40C
- Cable Length:
- 50 ft
- Manufacturer:
- Totalcomp
- Model:
- TRC1-56K
- Part Number:
- 2078
