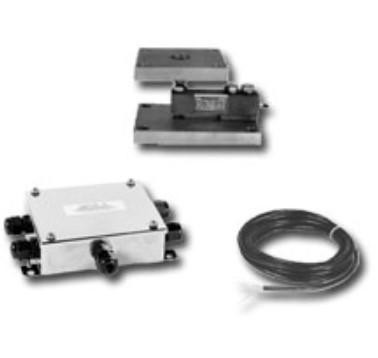

Totalcomp TTK weigh modules are commonly used to convert tanks, bins, and hoppers into medium to heavy capacity scales. Totalcomp TTK3 series module kits includes three TSB load cells, three TTK modules, one CSB junction box, and a 20 ft homerun cable.
Weigh Module Kit Includes:
- (3) 5000 lb TSB single ended beam load cells
- (3) TSWM spherical washer mounting assembly for single ended beam
- (1) CSB compact stainless steel summing junction box
- 20 ft 6 wire homerun cable
Load Cell Features
- NTEP approved
- Alloy steel with nickel plated construction
- 3 mV/V output
- IP67 rating
- Load cell cable length 20 ft
- Safe overload up to 150% capacity
Documentation
Totalcomp TSB Single Ended Beam Data Sheet Totalcomp TTK Weigh Module Data Sheet
1 year limited manufacturer's warranty
- Individual Load Cell Capacity Rating:
- 5000 lb
- Combined Capacity Rating:
- 15,000 lbs
- Recommended Capacity of Completed Scale:
- 7500 lbs
- NTEP:
- Yes
- Class:
- III/IIIL
- NTEP CC:
- 93-123
- Construction:
- Alloy steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 10 VDC (maximum of 15 V)
- Full Scale Output:
- 3 mV/V
- Input Resistance:
- 350 ohms
- Output Resistance:
- 350 ohms
- IP Rating:
- IP67
- Safe Overload:
- 150 % full scale
- Operating Temperature Range:
- -16C to 65C
- Cable Length:
- 20 ft
- Manufacturer:
- Totalcomp
- Model:
- TTK3-5K
- Part Number:
- 3544
