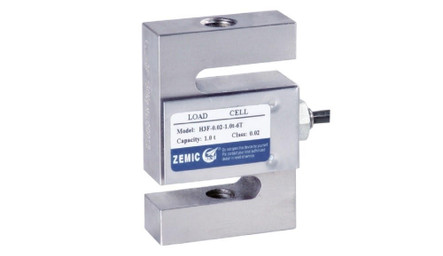

Zemic H3F-N5-2K-6YT 2000 lb S-Beam Load Cell, NTEP

MSRP: $275.00
$222.00
(Save $53.00)
Part #:
H3F-N5-2K-6YT
Availability:
Typically ships in 1-2 days

Zemic H3F-N5-2K-6YT 2000 lb S-Beam Load Cell, NTEP

Features

  • 2000 lb capacity rating
  • NTEP approved
  • Alloy steel construction, nickel plated
  • IP67 rating
  • 3 mV/V output
  • Load cell cable length 20 ft
  • Safe overload up to 150% capacity

Common Applications

  • OEM
  • Crane scales
  • Hoppers
  • Tank scales
  • Tension and compression

Interchange

  • Sensortronics 60001,60036,RTI363
  • Celtron STC
  • Coti Global CISB
  • Transcell BSS
Documentation

H3F Data Sheet

1 year limited manufacturer's warranty
Manufacturer:
Zemic
Model:
H3F-N5-2K-6YT
NTEP:
Yes
NTEP CC:
06-099A1
Capacity:
2000 lb
Safe Overload:
150% capacity
Ultimate Overload:
300% capacity
Height:
3"
Length:
2"
Width:
1.25"
Hole Threading:
1/2-20UNF-2B
Construction:
alloy steel
Finish:
nickel plated
Cable Color Code:
Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
Rated Excitation:
5-12 VDC (maximum of 18 V)
Full Scale Output:
3 mV/V
Output Resistance:
351 (+/- 2) ohms
Input Resistance:
350 (+/- 3.5) ohms
Compensated Temperature Range:
14‚°F to 104‚°F (-10‚°C to 40‚°C)
Operating Temperature Range:
-31‚° F to 158‚° F / -35‚°C to 70‚°C
IP Rating:
IP67
Insulation Resistance:
5000 megohms
Cable Length:
20 ft
Cable Diameter:
ƒÃ‹œ0.2in
