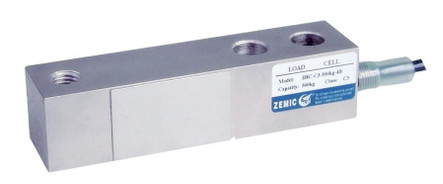

Zemic H8C-N5-1.5K-6YB 1500 lb Single Ended Beam Load Cell, NTEP

MSRP: $190.00
$162.00
(Save $28.00)
Part #:
H8C-N5-1.5K-6YB
Availability:
Typically ships in 1-2 days

Zemic H8C-N5-1.5K-6YB 1500 lb Single Ended Beam Load Cell, NTEP

Features

  • 1500 lb capacity rating
  • NTEP approved
  • Alloy steel construction, nickel plated
  • IP67 rating
  • 3 mV/V output
  • Load cell cable length 20 ft
  • Safe overload up to 150% capacity

Common Applications

  • OEM
  • Floor scales
  • Low profile scales
  • Hoppers
  • Tank scales

Interchange

  • Rice Lake Weighing Systems RL35023/39123
  • Sensortronics 65023
  • Revere 5123
  • HBM B35
  • Tedea 3420/3421
  • Celtron SQB
  • Coti Global CI-23
  • Artech 30310
  • Totalcomp TSB
  • Transcell SBS
Documentation

H8C Data Sheet

1 year limited manufacturer's warranty
Manufacturer:
Zemic
Model:
H8C-N5-1.5K-6YB
NTEP:
Yes
NTEP CC:
12-028
Capacity:
1500 lb
Safe Overload:
150% capacity
Ultimate Overload:
300% capacity
Height:
1.25"
Length:
5.12"
Width:
1.25"
Hole Threading:
1/2-20UNF
Construction:
alloy steel
Finish:
nickel plated
Cable Color Code:
Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
Rated Excitation:
5-12 VDC (maximum of 18 V)
Full Scale Output:
3 mV/V
Output Resistance:
350 (+/- 3.5) ohms
Input Resistance:
350 (+/- 3.5) ohms
Compensated Temperature Range:
14‚°F to 104‚°F (-10‚°C to 40‚°C)
Operating Temperature Range:
-40‚° F to 150‚° F / -40‚°C to 65‚°C
IP Rating:
IP67
Insulation Resistance:
5000 megohms
Cable Length:
20 ft
Cable Diameter:
ƒÃ‹œ0.2in
