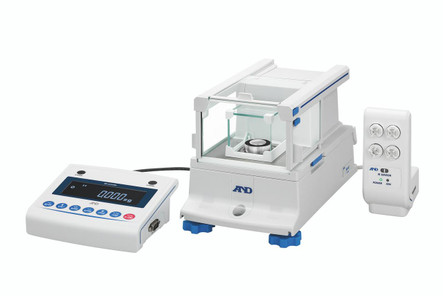

A&D Weighing Borealis microbalances are designed to handle complex weighing procedures with exceptional precision and user-friendly operation. The innovative draft shield is designed to prevent contaminant build-up, features automatic open/close doors, and flexible door positioning for maximum visibility of the weighing chamber. With expansive connectivity ports, GLP printing and administration-level access, Borealis semi micro balances ensure compliance and data protection.
Borealis balances are loaded with the latest technology, including internal repeatability checks, automatic diagnostic, impact detection and automatic internal calibration to ensure consistent and reliable performance. An external ionizer is included with every Borealis microbalance to remove static buildup on samples, further improving weighing results and repeatability. For critical weighing in industrial labs and university research departments, Borealis provides an excellent solution with the end-user in mind. Borealis semi-micro and microbalances are backed by a 5 year manufacturer's warranty for added peace-of-mind.
Features
- Large 11-segment backlit LCD display
- Expansive connectivity including RS232, USB-B and 2 x external input
- Dual range capacity and readability
- Automatic internal calibration
- Internal repeatability check for an in depth look at the current performance of the balance
- Smart routine check (SRC) that allows end user to assess the handling of the balance
- Impact shock detection (ISD) detects impacts applied to the weighing sensor to potentially prevent mishandling
- Daily/periodic internal diagnostic to confirm systems functionality
- Automatic draft shield doors to help with stability
- Removable top mounted draft shield prevents contaminant buildup
- Inner draft shield provides additional level of stability and protection
- Two IR touchless sensors
- Administrative access control prevents changes to balance functions
- Audit log to track a range of actions
- GLP/GMP/GCP/ISO compliant output
- External ionizer included
Applications
- Weighing
- Parts counting
- Percentage weighing
Documentation
- Capacity:
- 2.1/6.2 g
- Readability:
- 0.001/0.01 mg
- Repeatability (standard deviation):
- 0.0025 mg (for 1 g) 0.01 mg (for 6 g)
- Linearity:
- 0.010 mg / 0.02 mg
- Sensitivity Drift (10°C-30°C):
- ±2ppm/°C (when automatic self calibration is not used)
- Calibration:
- Internal calibration, external calibration, automatic internal calibration
- Display Refresh Rate:
- 5 times per second or 10 times per second
- Weighing Units:
- mg (milligram), g (gram), oz (ounce), ozt (troy ounce), ct (metric carat), mom (momme), dwt (pennyweight), gr (grain), pcs (counting mode), and % (percent mode)
- Stabilization Time:
- approximately 10 seconds
- Display:
- 11-segment backlit LCD display
- Pan Size:
- 25 mm (Diameter)
- Communication:
- RS-232C (D-Sub 9P), USB-B (mini B), External key input × 2
- Operating Temperature:
- 5 to 40 °C (41 to 104 °F), 85%RH or less (no condensation)
- Power:
- AC adapter
- Overall Dimensions (W x D x H):
- 173 x 305 x 284 mm
- Brand:
- A&D Weighing
- Model:
- BA-6DE
- Standard Accessories Included:
- External ionizer, Three sizes of aluminum analytical pans × 10 each*vii, Filter weighing pan (Ø50 mm) × 1*vii, Tweezers for calibration weight × 1, Micro spatula × 1
