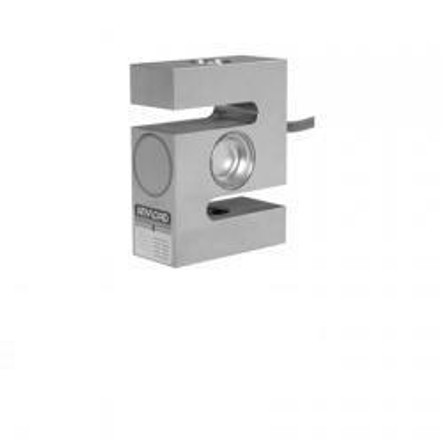

Anyload 101BS-1Klb 1000 lb Stainless Steel S-Beam Load Cell, NTEP, OIML
Features
- 1000 lb capacity rating
- NTEP Approved
- NTEP 1:5500 Class III
- Stainless steel construction
- Welded seal IP68 rating
- 2 mV/V output
- Load cell cable length 5 m
- Safe overload up to 150% capacity
Interchange
- Rice Lake Weighing Systems RL20001HE
- Coti Global CGSB-SSW
- Flintec ULB
- HBM RSC
- Celtron STC HSS
- Tedea-Huntleigh 616
- Tedea-Huntleigh 620
Common Applications
- OEM
- Crane scales
- Hoppers
- Tension testing
Documentation
1 year manufacturer's limited warranty
- Manufacturer:
- Anyload
- Model:
- 101BS-1Klb
- Capacity:
- 1,000 lb
- NTEP:
- Yes
- NTEP Class:
- 1:5500 Class III
- Safe Overload:
- 150% capacity
- Breaking Overload:
- 300% capacity
- Rated Excitation:
- 10 VDC (maximum of 15 V)
- Height:
- 3"
- Width:
- 1.11"
- Length:
- 2"
- Hole Threading:
- 1/2-20 UNF-2B
- Construction:
- Stainless steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Full Scale Output:
- 2 mV/V
- Output Resistance:
- 350 (+/- 3) ohms
- Input Resistance:
- 400 (+/- 20) ohms
- Compensated Temperature Range:
- 14° F to 122° F / -10°C to 50°C
- Seal Type:
- Welded seal
- IP Rating:
- IP68
- Cable Length:
- 5 m
