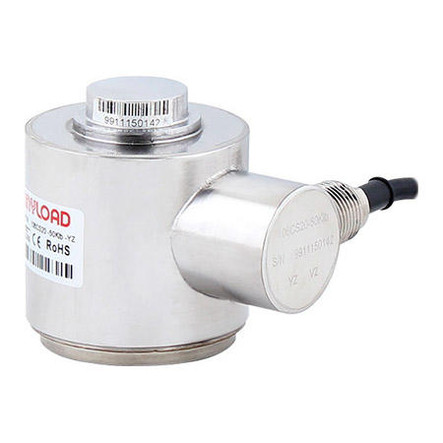

Anyload 106CS20-100Klb-YZ Canister Load Cell

$1,602.00
Part #:
106CS20-100Klb-YZ
Availability:
Typically ships in 2-3 days

Anyload 106CS20-100Klb-YZ Canister Load Cell

Features

  • 100K lb capacity rating
  • Stainless steel construction
  • Welded seal IP68
  • 2.0 mV/V ± 0.25% output
  • Load cell cable length 10 m
  • Safe overload up to 150% capacity

Interchange

  • Coti Global CG-26S5
  • Rice Lake RLCSP1
  • Vishay Revere Transducers CSP
  • Vishay Revere Transducers 692B
Common Applications
  • Railroad Scales
  • Truck Scales
Documentation

106CS20 Data Sheet

1 year manufacturer's limited warranty
Manufacturer:
Anyload
Model:
106CS20-100Klb-YZ
Approvals:
CE, RoHS, and Ex
Capacity:
100,000 lb
Safe Overload:
150% capacity
Length:
3.70"
Height:
5.00"
Width:
3.70"
Hole Thread:
3/4-16 UNF-2B Depth0.98
Construction:
Stainless Steel
Cable Color Code:
Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
Rated Excitation:
10 V (maximum of 15 V)
Full Scale Output:
2.00 mV/V ± 0.25%
Input Resistance:
450 (± 4.5) ohms
Output Resistance:
480 (± 4.5) ohms
Compensated Temperature Range:
14°F to 122°F/-10°C to 50°C
Seal Type:
Welded Seal
IP Rating:
IP68
Cable Length:
10 m
