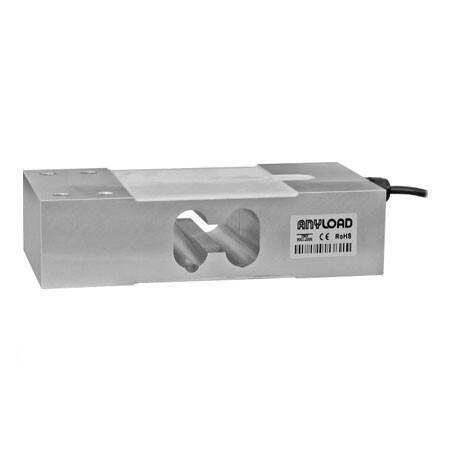

Features
- Material: Aluminum, Clear Anodized
- Rated Capacity: 50kg
- NTEP certified, Class III
- Full Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- CE, RoHS, NTEP, and Ex certified
Documentation
1 year manufacturer's limited warranty
- Capacity:
- 50 kg
- Approvals:
- CE, RoHS, NTEP, and Ex certified
- NTEP:
- Yes
- Class:
- III
- Safe Overload:
- 150% capacity
- Construction:
- Aluminum
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 10 V (maximum of 15 V)
- Full Scale Output:
- 2.0 mV/V ±10%
- Output Resistance:
- 350 (± 3) ohms
- Input Resistance:
- 415 (± 15) ohms
- Compensated Temperature Range:
- 14°F to 104°F/-10°C to 40°C
- Seal Type:
- Environmentally sealed
- IP Rating:
- IP66
- Cable Length:
- 1 m
- Manufacturer:
- Anyload
- Model:
- 108BATD-50kg
