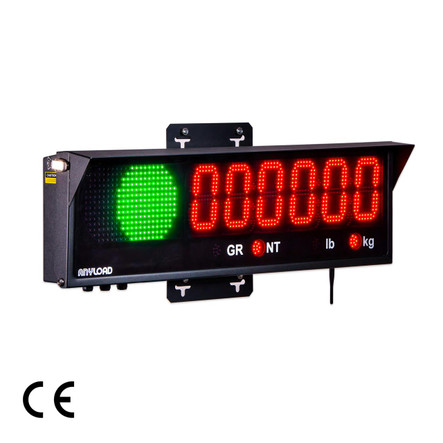

The ANYLOAD 808BH are newest generation industrial remote displays designed to be versatile, rugged, durable, and easy to install. This highly visible remote display includes a built-in stop/go traffic light, ideal for truck weighing lanes.
Visibility
- Built-in Red/Green traffic light
- Double-row discrete LED, 6 digits, 5” height, 7 segment
- Wide viewing 120° angle
- Auto brightness adjustment
- Mirror display
Lane Control
- Two manual input switches in solid or blinking modes
- Several pre-installed software utility programs
- Serial ASCII commands sent by programmable indicators
- Special custom ordered software protocols
Smart Auto-Learn
- Automatically detect indicator string protocols
- Automatically set communication baud rates
Communication
- Input: Independent RS232, RS422, RS485, 20mA Current Loop (active or passive)
- Output: Echo out and addressable multi display configuration
Service Friendly
- Modular design
- External membrane keypad
- Hinged front cover
- Pivoting internal electronics plates
- Wireless option
Enclosure
- Weather-proof design, IP65 rated
- Visor to protect from sun or rain shade
- Wall and pole mount kit
- Breather vent
Product Warranty
1 year manufacturer's limited warranty
- IP Rating:
- IP65
- Construction:
- Powder coated mild steel
- Display Type:
- 6-digit, 7-segment, 5 in. LED, with 6 in. traffic lights
- Display Visibility:
- 1500mcd high intensity brightness, 120° viewing angle, discrete red CREE® LED
- Status Indication:
- 4 annunciators for GR, NT, lb and kg
- Communication:
- 3 independent serial ports for RS232, RS422/RS485, and 20mA current loop
- Working Environment:
- -40°F to 120°F, 20% to 90% RH
- Power:
- 100-240VAC, 1.2A, 50/60Hz
- Housing Dimensions (W x H x D):
- 32.5 x 9.8 x 3.5 in.
- Weight:
- 27 lbs
- Brand:
- Anyload
- Part Number:
- 808BH
- Approvals & Certifications:
- CE Marking, EMC and LVD Directives, UL/CSA approved class II power supply
