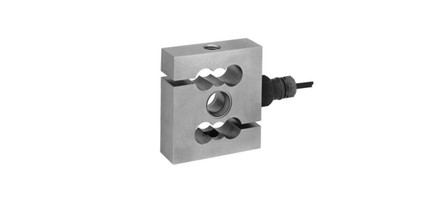

CAS UB1-11K 11,250 lb Stainless Steel S-Beam Load Cell
Features
- 11,250 lb capacity rating
- Stainless steel construction
- IP 68/69K rating
- Completely hermetically sealed
- 2 mV/V output
- M24 x 2 thread
- Load cell cable length 6 meter
- 1 year limited manufacturer's warranty
- Safe overload up to 200% capacity
1 year limited manufacturer's warranty
- Manufacturer:
- CAS
- Model:
- CAS-UB1-11K
- Capacity:
- 11,250 lb
- Safe Overload:
- 150% capacity
- Length:
- 5.6"
- Width:
- 1.7"
- Height:
- 5.4"
- Hole Threading:
- M24x2
- Construction / Finish:
- Stainless Steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal, Yellow = Shield
- Rated Excitation:
- 10 VDC (maximum of 15 V)
- Rated Output:
- 2 mV/V
- Input Resistance:
- 1100 +/- 50 ohms
- Output Resistance:
- 1000 +/- 2 ohms
- Compensated Temperature Range:
- -10°C to 40°C
- Operating Temperature Range:
- -20°C to 65°C
- IP Rating:
- IP68/69K
- Seal Type:
- Hermetically sealed
- Cable Length:
- 6 meter
