Features
- 2,500 lb capacity rating
- 8 in. plate
- Stainless Steel Construction

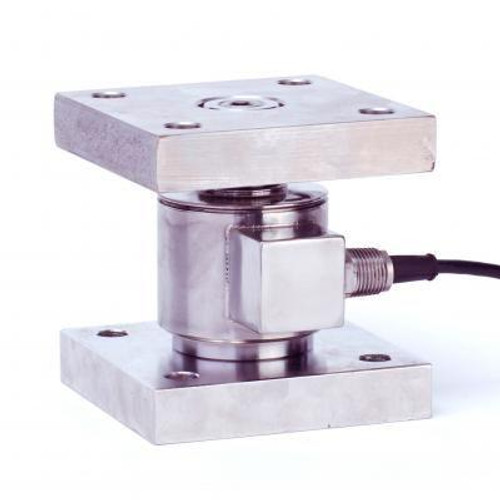

- Compression Canister Tank Weighing Assembly
- Hermetically sealed
- 2.00 mV/V output
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 2,500 lb
- Safe Overload:
- 150% FS
- Approvals:
- FM (US and Canada)
- Rated Output:
- 2.0 mV/V +/- 0.1%
- Excitation Voltage:
- 10 AC/DC (20V MAX)
- Input Resistance:
- 380 +/- 10 ohms
- Output Resistance:
- 380 +/- 5 ohms
- Zero Balance:
- +/- 1% FS
- Seal Type:
- Hermetically
- Non-Linearity:
- +/- 0.05% FS
- Repeatability:
- +/- 0.01% FS
- Operating Temperature Range:
- -20 ºC to +60 ºC
- Cable Length:
- 30 ft
- Load Cell Cable:
- Green +EXC, Black -EXC, White +SIG, Red -SIG
- Approvals:
- FM
- Construction:
- Stainless Steel
- Manufacturer:
- Coti Global
- Model:
- CG-SP9M-2.5K-8
