Features
- 15,000 lb capacity rating
- Stainless Steel Welded Construction

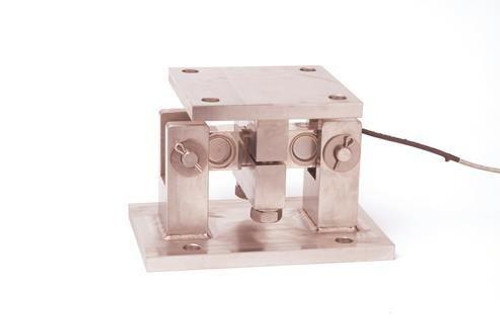

- Double Ended Beam Weigh Module
- 3 mV/V output
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 15,000 lb
- Safe Overload:
- 150% FS
- Approvals:
- FM (US and Canada)
- Rated Output:
- 3.0 mV/V
- Excitation Voltage:
- 10 AC/DC (15V MAX)
- Load Cell Resistance:
- 700 ohms
- Operating Temperature Range:
- -20 ºC to +60 ºC
- Load Cell Cable:
- 50 ft
- Construction:
- Stainless Steel Welded
- Manufacturer:
- Coti Global
- Model:
- CG16M-15K-SSW
