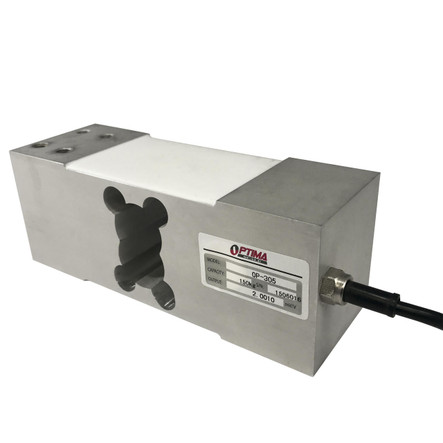

Optima OP-305 500 kg Single Point Aluminum Load Cell
Features
- 500 kg capacity rating
- IP Rating 67
- Aluminum construction
- Load cell cable length 10 feet
- Safe overload up to 150% capacity
Interchange Options
- Coti Global Sensors CG-50-2
- HBM PW24
- Tedea 1263
- Transcell FAV
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 500 kg
- Safe Overload:
- 150% capacity
- Dimensions:
- 6.85 x 2.56 x 2.36 in
- Hole Thread:
- M81.25 x 0.79dp
- Construction:
- Aluminum
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Rated Output:
- 2.0±0.2mV/V
- Input Resistance:
- 410±10 ohms
- Output Resistance:
- 350±3 ohms
- Insulation Resistance:
- >5000 megohms
- Cable Length:
- 10 ft
- Manufacturer:
- Optima
- Model:
- OP-305-500
